Server is in another domain from the workstation.
Credentials are given.
Upon logging in, the password must be changed.
or
Upon logging in, the password is expired.
The password cannot be changed via RDP.
You can try to save the RDP file and edit with a text editor.
Change or add to: enablecredsspsupport:i:0
In our experience, this didn't work since NLA is turned on in the server and the system being used is not part of the domain.
https://server.domain.tld/RDWeb/Pages/en-US/password.aspx
There is a page in the RDWeb server that can be turned on. Check to see if this page exists on the server.
Outlook Automatically Deletes Email | Outlook Junk E-mail Filter
Them: I'm not getting email from Foo User.
Me: According to server logs the message is being received. Are you sure you don't see the message in the Inbox.
Them: Yes, I am sure. The message is not there.
Me: OK, I'll look into it.
First, trace the message to see where it is going:
Get-MessageTrackingLog -Start "04/20/2021" -Sender
And see if there are any FAIL's:
Get-MessageTrackingLog -EventId FAIL -Start "04/01/2021" -Recipients
This will verify that the message is indeed being received.
Next, let's take a look at where the messages are in Outlook. This will generate a report and put it in your Mailbox. The report will collect the message info and let us know where the messages are in Outlook:
Get-Mailbox foo.user | Search-Mailbox -SearchQuery {Received:"03/01/2021..04/20/2021" AND Subject:"foo-subject"} -TargetMailbox "my.account" -TargetFolder "SearchAndDeleteLog" -LogOnly -LogLevel Full
The result is that the messages are being received and are in OUTLOOK but they are in the DELETIONS folder and they have not been read:
The DELETIONS folder is a special folder that is different than the DELETED-ITEMS folder. The DELETIONS folder is for email that has been deleted from the DELETED-ITEMS.
How is that happening?
To start with the DELETION folder, let's see how many items are in the DELETIONS folder:
Get-MailboxFolderStatistics foo.user |Select Name, ItemsInFolder |findstr /i deletions

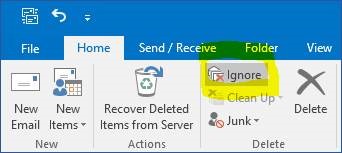

The IGNORE button will automatically send messages-in-the-conversation to the DELETIONS folder.
This can be recovered by:
As an administrator, the only way to see if IGNORE is on is through MFCMAPI (just search for it, comes right up):
This will show if there are any IGNORE conversations with the SUBJECT and DATE so that you can target the message in the RECOVER-DELETED-ITEMS-FROM-SERVER.
Them: The messages are not IGNORED.
Me: hmmm.... Messages are automatically deleted and are not ignored.
Just to double-check, let's make sure IMAP and POP are stopped. The reason we want to do this is so that there are no IMAP client problems happeing.
get-service -Name MSExchangeIMAP*
get-service -Name MSExchangePOP*
Even if the services are stopped, we want to check the settings for the services to ensure the LoginType is SecureLogin:
get-ImapSettings |fl
get-POPSettings |fl
get-IMAPSettings |select *log*
get-POPSettings |select *log*
And make sure that the logs are turned on incase something gets turned on by someone else on the team:
Set-ImapSettings -ProtocolLogEnabled $true
Set-PopSettings -ProtocolLogEnabled $true
Also, let's turn off mailbox access to IMAP, POP and OWA:
get-casmailbox | ?{$_.OWAEnabled -eq $true} |set-casmailbox -OWAEnabled $false
get-casmailbox | ?{$_.POPEnabled -eq $true} |set-casmailbox -POPEnabled $false
get-casmailbox | ?{$_.IMAPEnabled -eq $true} |set-casmailbox -IMAPEnabled $false
Check the mailbox Spam Confidence Level (SCL) to see if anything is enabled:
Get-ContentFilterConfig |fl Enabled
Enabled : False
Get-OrganizationConfig |fl *scl*
SCLJunkThreshold : 8
Get-Mailbox foo.user |fl AntispamBypassEnabled
AntispamBypassEnabled : False
Get-Mailbox foo.user |fl SCL*
SCLDeleteThreshold :
SCLDeleteEnabled :
SCLRejectThreshold :
SCLRejectEnabled :
SCLQuarantineThreshold :
SCLQuarantineEnabled :
SCLJunkThreshold :
SCLJunkEnabled :
Junk E-mail options are included in Exchange/Outlook. This happens on both the server-side in EXCHANGE but also can happen in the local OUTLOOK client directly as OUTLOOK uses its own SMARTSCREEN filter technology; a client-side filter.
(Note that this is why the settings in EXCHANGE don't always reflect the settings in OUTLOOK.)
This happens because OUTLOOK can be used with accounts other than EXCHANGE accounts. Again, the local OUTLOOK client has its own Junk Mail filter that is independent from the server-side EXCHANGE Junk Mail filter.
To add more, on 11/01/2016, Microsoft stopped generating updates for the OUTLOOK client SMARTSCREEN client-side filter.
As a result, for Email Protection to work properly/efficiently, Junk Email filtering should be:
-enabled in OWA/EMS.
-disabled in Outlook client.
The server-side EXCHANGE filter happens through a hidden INBOX-RULE on the mailbox. Let's see the server-side filter:
Get-InboxRule -Mailbox foo.user
Get-InboxRule -Mailbox foo.user -IncludeHidden
Let's check the configuration for the Junk E-mail on the server-side EXCHANGE. This can be done in the OWA (web email access) or through EMS (Exchange Management Shell); both have the same effect (but does not change the client-filter in OUTLOOK):
Get-MailboxJunkEmailConfiguration foo.user
Let's set the mailbox Junk E-mail Settings:
set-MailboxJunkEmailConfiguration foo.user-enabled $true
(or $false if needing to turn off)
(Note OWA changes can be done via the URL: https://mail.domain.tld/owa/
While the client-side filter OPTIONS-tab (off | low | medium | high) cannot be changed by settings on the mailbox, the SAFE-SENDERS, SAFE-RECIPIENTS, BLOCKED-SENDERS tabs can be changed on the server which will update the settings in OUTLOOK:
(Get-MailboxJunkEmailConfiguration foo.user).BlockedSendersAndDomains
To set and make changes on the client-side filter and set just one domain:
set-MailboxJunkEmailConfiguration foo.user -trustedsendersanddomains foobar.tld
Or add the domain without changing what is already set in place:
set-MailboxJunkEmailConfiguration foo.user -trustedsendersanddomains @{Add="foobar.tld"}
With the server-side EXCHANGE settings set, let's look at the message headers to see if there are any server-side junk-email tags in the headers:
Get-Mailbox foo.user | Search-Mailbox -SearchQuery {Received:"03/01/2021..04/20/2021" AND Subject:"foo-subject"} -TargetMailbox "my.account" -TargetFolder "SearchAndDeleteLog"
RESULT: no EXCHANGE tags are found the message headers.
Again, to reiterate, the state of the junk email rule on the mailbox doesn't affect the client-side junk email settings that are available in the Outlook Junk Email Filter. Even when the junk email rule is disabled in the server-side mailbox, Outlook can still move messages to the Junk Email folder or automatically delete messages.
When the local client-side Outlook Junk Email Filter is set to Low or High, the Outlook Junk Email Filter uses its own SmartScreen filter technology to identify and move spam to the Junk Email folder. This spam classification is separate from the SCL Junk Email threshold that's configured on the Exchange organization or on the mailbox. In fact, Outlook ignores the SCL value that's set on a message by Exchange (for all SCL values other than -1), and uses its own criteria to determine whether the message is spam.
So how to change the local Outlook Junk Email Filter that uses its own SmartScreen filter technology?
While Microsoft recommends that to enable, disable, and configure the client-side Junk Email Filter settings that are available in Outlook to use Group Policy, there are regedits that can be made to control a policy. When the regedits are made, the setting is greyed-out and cannot be changed by the local account.
On the client system with OUTLOOK, check to see if any policies exist:
reg query HKCU\Software\Policies\Microsoft\office\16.0\outlook
reg query HKCU\Software\Policies\Microsoft\office\16.0\outlook\Options\Mail
Disable the local OUTLOOK client JUNK E-MAIL SMARTSCREEN filter but Options can still be changed (no visual queue shows the filter is disabled):
echo y |reg add "HKCU\Software\Policies\Microsoft\Office\16.0\Outlook" /v DisableAntiSpam /t REG_DWORD /d 1
Change the JUNK E-MAIL OPTIONS to LOW:
echo y |reg add "HKCU\Software\Policies\Microsoft\office\16.0\outlook\Options\Mail" /v JunkMailProtection /t REG_DWORD /d 0xfffffff
Change the JUNK E-MAIL OPTIONS to OFF:
echo y |reg add "HKCU\Software\Policies\Microsoft\office\16.0\outlook\Options\Mail" /v JunkMailProtection /t REG_DWORD /d 4294967295
Them: I am finally getting the report now. Thank you for helping me!
https://docs.microsoft.com/en-us/powershell/module/exchange/set-mailboxjunkemailconfiguration?view=exchange-ps
https://techcommunity.microsoft.com/t5/exchange-team-blog/deprecating-support-for-smartscreen-in-outlook-and-exchange/ba-p/605332
Offline Address Book (OAB) is found with the following:
Get-OfflineAddressBook |fl
To get the needed info:
Get-OfflineAddressBook |select name,GUID,GeneratingMailbox,VirtualDirectories |fl
Get-OabVirtualDirectory |fl
OAB logs are here (default location):
C:\Program Files\Microsoft\Exchange Server\V15\Logging\OABGeneratorLog
OAB changes are kept here (default location):
OC:\Program Files\Microsoft\Exchange Server\V15\ClientAccess\OAB\{guid-from-get-offlineaddressbook}
The files inside have a randomly generated GUID2. The manifest is the xml file.
Force an update of OAB:
Get-OfflineAddressBook |update-OfflineAddressBook
The OAB locally is found here:
%LOCALAPPDATA%\Microsoft\Outlook\
The GUID2 matches the GUID2 found on the server.
Please see the following for a deep-dive fix:
http://www.daknetworks.com/blog/584-oab-0x8004010f-hafnium-fix-outlook-address-book-deep-dive-fix
NOTES:
https://techcommunity.microsoft.com/t5/exchange-team-blog/the-case-of-constant-oab-generation-and-full-oab-downloads/ba-p/1031610
https://msexchangeguru.com/2013/12/04/e2013-oab/
https://www.youtube.com/watch?v=AvywR9CWYHs#t=2246
Find Dell Dock Via Powershell
wget https://downloads.dell.com/FOLDER07071810M/1/DSIAPC_2.4.0.0.msi -outfile DSIAPC_2.4.0.0.msi
msiexec.exe /i "DSIAPC_2.4.0.0.msi" ALLUSERS=1 /qn /norestart /log output.log
start-sleep 120
gwmi -n root\dell\sysinv dell_softwareidentity | select versionstring, elementname |sort elementname |more
HAFNIUM exploit for Exchange servers has caught everyone by storm.
In short, see if there are any IOC by running a script :
https://github.com/microsoft/CSS-Exchange/tree/main/Security
Next, run the Microsoft Support Emergency Response Tool (MSERT) to eliminate any glaring errors:
https://docs.microsoft.com/en-us/windows/security/threat-protection/intelligence/safety-scanner-download
The notes on the MSERT are here:
https://msrc-blog.microsoft.com/2021/03/05/microsoft-exchange-server-vulnerabilities-mitigations-march-2021/
Some are reporting about Scheduled Tasks doing damage. Here is how to view the Scheduled Tasks:
Get-ScheduledTask |select taskname,actions -ExpandProperty actions |select taskname,execute,arguments |ft -wrap
Some reports of newly created accounts/group so let's check those as well:
$days = (Get-Date).AddDays(-30)
Get-ADUser -Filter * -Property whenCreated | where {$_.whenCreated -gt $days} | ft Name, whenCreated
Get-ADUser -Filter * -Property whenChanged | where {$_.whenChanged -gt $days} | ft Name, whenChanged
Get-ADGroup -Filter * -Property whenCreated | where {$_.whenCreated -gt $days} | ft Name, whenCreated
Get-ADGroup -Filter * -Property whenChanged | where {$_.whenChanged -gt $days} | ft Name, whenChanged
Here are my notes on changing to Jive/GoTo:
PBX Server URL:
https://my.jive.com/pbx
SETUP ACCOUNTS IN JIVE:
-click USERS (on left-hand side)
-type in account with phone-set-mac-address.
PROVISIONING-SERVER:
http://$companydomain.onjive.com/p
(or possibly $companydomain.onjive.com/p/$MA)
In DHCP Scope-Options, set the 160-Polycom-Boot-Server-Name to: http://$companydomain.onjive.com/p
TYPE: http (would like for it to be https)
USER: none
PASS: none
JIVE-PASS:
The JIVE Cloud Phone Server (aka JIVE PBX) automatically changes the password to each device. This is found here:
https://my.jive.com/pbx/$companydomain/security
JIVE-NETWORKS:
Phones will need access to the JIVE servers through the firewall:
https://static.jive.com/meta/networks.txt
+199.87.120.0/22
+162.250.60.0/22
+199.36.248.0/22
208.34.80.0/21
208.34.96.0/20
45.12.196.0/24
JIVE-PORTS:
Phone will need access to the following ports:
TCP
5060-5062
80
443
UPD
5060-5062
10000-65500
4000-4999
123
JIVE-SUPPORT-SITE:
https://support.goto.com/connect
JIVE-REBOOT:
Reboot the phone sets and they will automatically change to JIVE. Rebooting can be done through switch POE or if needed, the following package can be used to reboot phone sets.
PolycomVVXControl.exe -a 10.123.123.123 -w password-here reboot
PolycomVVXControl.exe -a 10.123.123.123 -w password-here factoryreset
JIVE-REBOOT-PROBLEMS:
In a few cases, systems were rebooted and changed to the new JIVE PBX server before the account was added in the JIVE PBX PANEL. Since there is no account, the phone changes to the JIVE server but no extension or account is added to the phone.
Trying to factory reset through the phone-web page or PolycomVVXControl doesn't work because JIVE has already changed the password.
But since the new account isn't provisioned, the new password isn't provisioned as well.
What to do? Well, JIVE temporarily sets a provisioning password. Here it is:
POLYCOM PHONES JIVE PROVISION
PASS: 8647
-go to ATT.com.
-Account > Sign in.
-Manage Profile.
-Sign-in info.
-select Manage secure mail keys (at the bottom)
-Add secure mail key.
-type in a nickname for the secure mail key (example: Outlook).
-click Create-Secure-Mail-Key.
-the new secure mail key is shown and should be used for email access in Outlook/Thunderbird/Mail app.
Exploit: HAFNIUM
PATCH: KB5000871
Here is how to find all accounts with an E5 license:
get-msoluser -maxresults 1000 |?{($_.islicensed -eq $true) -and ($_.licenses.accountskuid -like "*e5*")}
Here is how to bulk remove everyone with an E5 license (Careful! Be sure you want to do this):
get-msoluser -maxresults 1000 |?{($_.islicensed -eq $true) -and ($_.licenses.accountskuid -like "*e5*")} | set-msoluserlicense -RemoveLicenses "domain-here:SPE_E5"
See an appxpackage:
Get-AppxPackage -allusers *Microsoft.Whiteboard*
Here it is in powershell:
Get-AppxPackage -allusers *Microsoft.Whiteboard* | Foreach {Add-AppxPackage -DisableDevelopmentMode -Register "$($_.InstallLocation)\AppXManifest.xml"}
Let's say that you have a new system in a remote location. The local staff opens the box, powers the system on and logs into the system with their 365 credentials. During that process, that system has become Azure AD Joined.
Systems cannot be both Azure AD joined and Local AD joined.
So, if you have a local AD and try to join the system to the local AD, an error message will show that joining the local AD cannot be done until it is no longer Azure AD Joined.
You can do this one by one but your not just tech support... you are a system administrator!
We need to do this in some type of shell command (command shell or power shell).
See if the system is joined to Azure AD or Local AD:
dsregcmd.exe /status
If it is Azure AD joined, leave the Azure AD:
dsregcmd /debug /leave
shutdown -r -t 3
After reboot, you can join the system to the Local AD:
For a single system:
add-computer -domainname domain.tld -Credential domain.tld\firstname.lastname -restart –force
Or to automate a group of systems:
$domain = "domain.tld"
$username = "domain.tld\foo.user.with.joining.privledges" (could be an admin account or an account setup to do just this task.)
$password = "password-here" |ConvertTo-SecureString -asPlainText -Force
Start-Sleep -s 10
$credential = New-Object System>management.Automation.PSCredential($username,$password)
Start-Sleep -s 20
add-computer -DomainName $domain -credential $credential
Start-Sleep -s 10
restart-computer
First get the current ALLOWED/BLOCKED state of the devices for an account"
Get-CASMailbox -Identity foo.user | Select-Object "*ActiveSync*"
Next get the device id for an account:
Get-MobileDevice -Mailbox foo.user| fl identity,deviceid
Allow the devices for the account:
Set-CASMailbox -Identity foo.user -ActiveSyncAllowedDeviceIDs @{add='D17VGSSFTP7VB799BVU1HTNH68'}
Set-CASMailbox -Identity foo.user -ActiveSyncAllowedDeviceIDs @{add='7044450f9e54415d907e56e5c09d517f'}
DISM.exe /Online /add-capability /CapabilityName:Rsat.ActiveDirectory.DS-LDS.Tools~~~~0.0.1.0 /CapabilityName:Rsat.BitLocker.Recovery.Tools~~~~0.0.1.0 /CapabilityName:Rsat.CertificateServices.Tools~~~~0.0.1.0 /CapabilityName:Rsat.DHCP.Tools~~~~0.0.1.0 /CapabilityName:Rsat.Dns.Tools~~~~0.0.1.0 /CapabilityName:Rsat.FailoverCluster.Management.Tools~~~~0.0.1.0 /CapabilityName:Rsat.FileServices.Tools~~~~0.0.1.0 /CapabilityName:Rsat.GroupPolicy.Management.Tools~~~~0.0.1.0 /CapabilityName:Rsat.IPAM.Client.Tools~~~~0.0.1.0 /CapabilityName:Rsat.LLDP.Tools~~~~0.0.1.0 /CapabilityName:Rsat.NetworkController.Tools~~~~0.0.1.0 /CapabilityName:Rsat.NetworkLoadBalancing.Tools~~~~0.0.1.0 /CapabilityName:Rsat.RemoteAccess.Management.Tools~~~~0.0.1.0 /CapabilityName:Rsat.RemoteDesktop.Services.Tools~~~~0.0.1.0 /CapabilityName:Rsat.ServerManager.Tools~~~~0.0.1.0 /CapabilityName:Rsat.Shielded.VM.Tools~~~~0.0.1.0 /CapabilityName:Rsat.StorageReplica.Tools~~~~0.0.1.0 /CapabilityName:Rsat.VolumeActivation.Tools~~~~0.0.1.0 /CapabilityName:Rsat.WSUS.Tools~~~~0.0.1.0 /CapabilityName:Rsat.StorageMigrationService.Management.Tools~~~~0.0.1.0 /CapabilityName:Rsat.SystemInsights.Management.Tools~~~~0.0.1.0
DISM.exe /Online /add-capability /CapabilityName:Rsat.BitLocker.Recovery.Tools~~~~0.0.1.0
Install-WindowsFeature BitLocker -IncludeAllSubFeature -IncludeManagementTools
:: Get Bitlocker status:
manage-bde -status
:: Get Bitlocker status powershell:
Get-BitLockerVolume -MountPoint "C:"
:: Suspend Bitlocker for a drive:
manage-bde -protectors -disable C:
:: Suspend Bitlocker for a drive powershell:
Suspend-BitLocker -MountPoint "C:" -RebootCount 0
:: Resume Bitlocker for a drive:
manage-bde –resume C:
:: Resume Bitlocker for a drive powershell:
Resume-BitLocker -MountPoint "C:"
:: Enable Bitlocker for a drive:
manage-bde -protectors -enable C:
:: Enable Bitlocker for a drive powershell:
Enable-BitLocker C:
:: Encrypt the used space only, skip the hardware test and store the recovery password in the Active Directory:
Enable-Bitlocker -MountPoint c: -UsedSpaceOnly -SkipHardwareTest -RecoveryPasswordProtector
::Powershell command on device to get the status of the local volume (ie C drive):
get-bitlockervolume
get-bitlockervolume |fl
:: Powershell command on device to get the RecoveryPassword
(Get-BitLockerVolume).KeyProtector
NOTES:
https://docs.microsoft.com/en-us/windows/security/information-protection/bitlocker/bitlocker-use-bitlocker-recovery-password-viewer
https://4sysops.com/archives/enable-bitlocker-with-powershell/
https://4sysops.com/archives/configure-and-enabling-bitlocker-on-windows-server/
https://4sysops.com/archives/store-and-retrieve-bitlocker-recovery-keys-from-active-directory/
https://www.rebeladmin.com/2019/09/step-step-guide-enable-bitlocker-cloud-managed-windows-10-devices-using-microsoft-intune/
Perception is reality. Nothing defines our modern brave new world better than that statement.
If you are an agent or hold a position and nobody knows about it; you're a secret agent. The reason nobody knows about it is because they don't see you in their daily incessant stream of information.
Breaking through clutter is one topic. Another is having the information there when they are searching for you.
Truth be told; most don't even do that. The general public searches and they find no information. None. That is a death blow.
To be found, the following must be established:
This is the most basic information. This needs to be determined. If not, then they will find information, it just won't be what you want it to be.
Moving on will be determined upon the industry you are in. For example, if you are in real estate sales, the following may apply:
Spend some time making sure that all your contact info at the industry specific places are the same.
I did the following:
At this point, all I had to do was install the intermediate and then install the certificate reply to the CSR. TomCat says no.... chain not valid.
I tried many intermediate and root certficates in the GD repository but the final certificate would not install.
https://certs.godaddy.com/repository
Nothing worked for me at this point.
Here is how to fix:
Now combine them:
-----BEGIN CERTIFICATE-----
MIICajCCAdOgAwIBAgIBAjANBgkqhkiG9w0BAQUFADA7MQswCQYDVQQGEwJVSzEa
....
-----END CERTIFICATE-----
-----BEGIN CERTIFICATE-----
MIICkjCCAfugAwIBAgIJAKm5bDEMxZd7MA0GCSqGSIb3DQEBBQUAMDsxCzAJBgNV
....
-----END CERTIFICATE-----TomCat runs on Java. To find the Tomcat version, you have to find were Java is installed. This can be anywhere.
For me, the location is:
C:\Program Files\HelpSystems\GoAnywhere\jre\bin
So open cmd and change to the location:
cd "C:\Program Files\HelpSystems\GoAnywhere\jre\bin"
Find the Java version:
java -version
I get:
openjdk version "1.8.0_192"
OpenJDK Runtime Environment (Zulu 8.33.0.1-win64) (build 1.8.0_192-b01)
OpenJDK 64-Bit Server VM (Zulu 8.33.0.1-win64) (build 25.192-b01, mixed mode)
To find the TomCat version:
java -cp "C:\Program Files\HelpSystems\GoAnywhere\tomcat\lib\catalina.jar" org.apache.catalina.util.ServerInfo
I get:
Server version: Apache Tomcat/7.0.105
Server built: Jul 2 2020 12:25:26 UTC
Server number: 7.0.105.0
OS Name: Windows Server 2016
OS Version: 10.0
Architecture: amd64
JVM Version: 1.8.0_192-b01
JVM Vendor: Azul Systems, Inc.
MFA seems to be in a few places. Here it is:
1
AAD > USERS
MULTI-FACTOR-AUTHENTICATION (at the top)
checkmark usernames
ENABLE (on the right)
2
AAD > SECURITY > IDENTITY-PROTECTION
MFA-REGISTRATION-POLICY
Sometimes the one in IDENTITY-PROTECTION does not work if you do not have a P2 license.
3
AAD > SECURITY > AUTHENITCATION-METHODS
4
AAD > SECURITY > MULTIFACTOR-AUTHENITCATION
5
AAD > USERS > USER-SETTINGS > MANAGE-USER-FEATURE-SETTINGS
6
AAD > USERS > PROPERTIES > MANAGE-SECURITY-DEFAULTS
If you need to check the MFA settings for an account through powershell:
Get-MsolUser -UserPrincipalName
If you need to clear the MFA settings for an account through powershell:
Set-MsolUser -UserPrincipalName
NOTES:
https://endpoint.microsoft.com
https://security.microsoft.com
https://entra.microsoft.com
https://aka.ms/mfasetup
Let's say that you have a loop because someone setup an INBOX RULE to forward to an outside domain that is having problems.
How do you clear the queue of 1M messages that show as a result?
To clear the incoming messages that have arrived in the inbox:
Get-Mailbox account.name | Search-Mailbox -SearchQuery {from:
To clear the messages in the queue for the recipient:
Get-ExchangeServer |?{$_.IsHubTransportServer -eq $true} |Get-Queue |get-message -ResultSize unlimited |?{$_.recipient -eq
To clear the messages in the queue for the postmaster <>:
Get-ExchangeServer |?{$_.IsHubTransportServer -eq $true} |Get-Queue |get-message -ResultSize unlimited |?{$_.sender -eq '<>'} |Remove-Message -WithNDR $False -Confirm $False
Hyper V General access denied error
IDE/ATAPI Account does not have sufficient privilege to open attachment 'E:\VMs\VMName\Disk0.vhd. Error: 'General access denied error'
What this is trying to tell you is that HYPER-V has a user account for each VM. This user account is a random string of letters & numbers. This user account is hidden. This user account has access to the the VHD's.
If you were to do something like move the VHD's off the drive, expand the drive and move them back on the new drive, the user account would no longer have access.
No problem. Just add the permissions back in.
Looke at the details of the error message and it will let you know the user account name. Something like:
AE78918D-FE0E-4E6D-AFF5-25B32D4FE243
In command prompt (as admin), type something like:
C:\>icacls "F:\VHD\VHD-NAME-HERE.avhdx" /grant "NT VIRTUAL MACHINE\AE78918D-FE0E-4E6D-AFF5-25B32D4FE243":(F)
It will repsond with something like:
processed file: F:\VHD\VHD-NAME-HERE_756DFD7E-5E29-4ABA-B12F-40BAD636E2A2.avhdx
Successfully processed 1 files; Failed processing 0 files
Now start the VM and it should start without hassle.
NOTES:
This is solved by creating a port-bond/lag/etherchannel on the Cisco Switch.
Here is my config:
interface Port-channel1
description LAG to Server Host 1
switchport
switchport trunk allowed vlan 1-3
switchport mode trunk
switchport nonegotiate
!
interface GigabitEthernet1/1
description LAG Server Host 1 Member 1
switchport
switchport trunk allowed vlan 1-2
switchport mode trunk
switchport nonegotiate
channel-group 1 mode on
!
interface GigabitEthernet1/2
description LAG Server Host 1 Member 2
switchport
switchport trunk allowed vlan 1-3
switchport mode trunk
switchport nonegotiate
channel-group 1 mode on
Recovering Foreign/Unconfigured (bad) drives
The controller says a foreign configuration was detected during boot. All of the drive bays have red lights on them. I try to import the configuration, but it fails.
Failure to import arrays usually means that the drives were unexpectedly powered off or disconnected from the RAID controller, which puts them in the Unconfigured(bad) state. This is done as a precautionary measure to prevent drives with bad connections from joining the array, as sudden disconnects can result in data corruption.
These scenarios may also be accompanied by errors regarding preserved-cache on the controller, where if there were pending write operations at the time of the failure the controller holds the data until the disks are verified working, again as a preventative measure against data corruption.
Drives stuck in the Unconfigured(bad) state need to be manually set back to Unconfigured(good) before they will be importable. Please be aware that this procedure does not guarantee that your data will be restored, and has the potential to further damage your data if the drives are failing due to hardware defects.
If you want to import the configuration anyway, you can set drives to Unconfigured(good) through the MegaRAID BIOS, then retry to import configuration.
1. Start the LSI/AVAGO/MEGARAID
2 click DRIVES (on the left-hand side).
3. -select an unconfigured drive, click on the PROPERTIES > GO
4. click Make Unconf Good > Go.
Do this for every Unconfigured(bad) drive.
5. Once all the drives have been marked good, head back to the MegaRAID BIOS home page, then click on Scan Devices to initiate a rescan of the enclosures. This should then prompt you with any foreign configurations detected, which you can then import.
Dealing with a data array of 24 physical disks. The controller is a MegaRaid/LSI/Avago/Broadcom 3108 firmware v24.9.0-0022. The physical disks are 500GB drives giving about 9TB.
Wanting to upgrade the storage space, I replaced the drives with 2 TB physical disks. This was done on-the-fly, 1-at-a-time so that the office was not disrupted. Fail disk, remove disk, insert new disk, let it re-raid. The process took about an hour a disk and I was able to complete over a few days.
With the new space available, I was able to grow the virtual-disk on the fly. Took about 8 hours to initialize.
With the disk space available, I wanted to expand the volume in Windows Disk Manager but got an error message:
"The volume cannot be extended because the number of clusters will exceed the maximum number of clusters supported by the file system."
Well, how many clusters do I have:
-type: fsutil fsinfo ntfsinfo f:
This shows that the cluster size is 4kb; this is the default-size.
As such, the official docs say that the max size is 16TB:
| Cluster size | Largest volume | Largest file |
|---|---|---|
| 4 KB (default size) | 16 TB | 16 TB |
| 8 KB | 32 TB | 32 TB |
| 16 KB | 64 TB | 64 TB |
| 32 KB | 128 TB | 128 TB |
| 64 KB (maximum size) | 256 TB | 256 TB |
The only way around this is to reformat the drive with a larger cluster size.
NOTES:
https://docs.microsoft.com/en-us/windows-server/storage/file-server/ntfs-overview
Outlook 365 Will Not Connect to Gmail
1- turn on 2-STEP-VERIFICATION here:
https://myaccount.google.com/security
2- create an APP-PASSWORD
(select MAIL > WINDOWS)
(it will give a random password such as: sdfs sdfd dfas hfgr)
3- disable SIMPLE ACCOUNT CREATION in OUTLOOK:
(download disable SIMPLE ACCOUNT CREATION)
(double-click to import)
4- restart OUTLOOK
5- add the gmail account
(use the APP-PASSWORD with no-spaces)
(do NOT use the password to access the account)
Dell Latitude 7490 BSOD | WHEA UNCORRECTABLE ERROR
WSUS Server Keeps Stopping
Internet Information Services (IIS) Manager → Server → Application Pools → Select “WSUSPool” → Actions Advanced → Recycling → change “Private Memory Limit (KB)“.
-set to 0 (no limit).
-started WSUSPool.
-started Windows WSUS service.
-started cleanup.
The default setting for WSUS are woefully inadequate. See either the of the following for either a WSUS Setup speedrun or a WSUS Complete Setup in-depth:
http://www.daknetworks.com/blog/408-wsus-setup
http://www.daknetworks.com/blog/658-wsus-complete-setup
Surface Pro Keyboard Does Not Work | Surface Pro Type Pad Does Not Work | Surface Book Keyboard Does Not Work
-open CMD (as admin)
-type:systeminfo (to verify Surface model:Surface Pro 4).
-download/install newest drivers/firmware for Surface model.
-reboot.
-device-manager.
-show hidden devices (click VIEW at the top).
-human-interface-devices.
-surface type pad integrator > delete > checkmark to remove drivers.
-keyboard.
-uninstall all keyboards.
-shutdown.
-hold volume-up and power button for full 30 seconds.
-power on.
-type pad should work.
Have a Watchguard AP 325. The Cisco switches are 2960. They are POE.
The Watchguard AP 325 powers and get IP address. The Watchguard Firebox cannot see the AP. What gives?
Well the port that it is on is not set a trunk port. A trunk port is a network port that allows data to flow across a network for multiple VLANs. Perhaps a trunk port is thought of as a “bundle.”
Since the AP is going to have multiple devices connected for traffic, it needs to be set as a trunk port.
Here's how:
enable
show interface status | include trunk
config t
int Gi3/0/34
Description Whatever AP Name Here
switchport mode trunk
switchport access vlan 1
switchport trunk native vlan 300
no switchport voice vlan
switchport trunk allowed vlan 300-306
end
show int Gi3/0/34 switchport
show int Gi3/0/34 trunk
write mem
copy run start
That should do it for this one.
-updated RST driver.
-wget https://downloadmirror.intel.com/29647/eng/SetupRST.exe -outfile setuprst-v17.9.1.1009.exe
-setuprst-v17.9.1.1009.exe -accepteula -s
-reboot
-bsod being caused by aksfridge.sys
-this is the SENTINEL bug.
-download the command line:
https://supportportal.gemalto.com/csm?sys_kb_id=979a4e21db92e78cfe0aff3dbf9619c6&id=kb_article_view&sysparm_rank=7&sysparm_tsqueryId=4ad5b82e1bfc5410f12064606e4bcb15&sysparm_article=KB0018319
a. Go to this site: https://sentinelcustomer.safenet-inc.com/sentineldownloads/
b. Click: Sentinel LDK RunTime & Drivers
c. Download: "Sentinel HASP/LDK - Command Line Run-time Installer".
d. Unzip the files.
e. In an elevated command prompt (run cmd.exe as an administrator) navigate to the location where you unzipped haspdinst.exe.
f. Type the command “haspdinst.exe -remove” without quotes and press Enter.
g. When it finishes successfully, type the command “haspdinst.exe -purge” without quotes and press Enter.
h. When this finishes successfully, the HASP drivers should now be uninstalled. Re-boot and try the upgrade again.
Fix Microsoft Windows Store | Fix Windows Calculator App
-go to: C:\Program Files\WindowsApps
-change ownership to ADMINISTRATORS.
-change permissions to ADMINISTRATORS | FULL-PERMISSIONS
-look in the list for the APP that won't work (ie CALCULATOR).
-delete the folders.
1. Copy URL for the Microsoft Windows Store app: https://www.microsoft.com/en-gb/p/microsoft-store/9wzdncrfjbmp?activetab=pivot:overviewtab
2. Paste copied URL into search box: https://store.rg-adguard.net/
3. Find WINDOWS STORE. There will be 2 versions
12007.1001.213.0
12007.1001.213.70
4. Download second latest version ending (.0 not .70)
5. Run the file and select Install
6. SETTINGS > APPS
7. click STORE
8. click ADVANCED-OPTIONS
9. click RESET
Dell Installation Command Lines just in case anyone needs:
dism /online /add-provisionedappxpackage /packagepath:C:\\DELL\27T76\175eee777610486798c16be30cbbe29b.appxbundle /dependencypackagepath:C:\\DELL\27T76\Microsoft.NET.Native.Framework.2.0_2.0.27427.0_x64__8wekyb3d8bbwe.appx /dependencypackagepath:C:\\DELL\27T76\Microsoft.NET.Native.Runtime.2.0_2.0.25709.0_x64__8wekyb3d8bbwe.appx /dependencypackagepath:C:\\DELL\27T76\Microsoft.VCLibs.140.00_14.0.27323.0_x64__8wekyb3d8bbwe.appx /dependencypackagepath:C:\\DELL\27T76\Microsoft.NET.Native.Framework.2.0_2.0.27427.0_x86__8wekyb3d8bbwe.appx /dependencypackagepath:C:\\DELL\27T76\Microsoft.NET.Native.Runtime.2.0_2.0.25709.0_x86__8wekyb3d8bbwe.appx /dependencypackagepath:C:\\DELL\27T76\Microsoft.VCLibs.140.00_14.0.27323.0_x86__8wekyb3d8bbwe.appx /licensepath:C:\\DELL\27T76\175eee777610486798c16be30cbbe29b_License1.xml /Region="all"
dism /online /add-provisionedappxpackage /packagepath:C:\\DELL\2PGXF\f68432bfe31a4034a94b2fa07b206df6.appxbundle /licensepath:C:\\DELL\2PGXF\f68432bfe31a4034a94b2fa07b206df6_License1.xml /Region="all"
dism /online /add-provisionedappxpackage /packagepath:C:\\Apps\334CH\DELL\334CH\11023d4f34c14610a6161cf4fb3c0d78.appxbundle /dependencypackagepath:C:\\Apps\334CH\DELL\334CH\Microsoft.NET.Native.Framework.2.0_2.0.27427.0_x64__8wekyb3d8bbwe.appx /dependencypackagepath:C:\\Apps\334CH\DELL\334CH\Microsoft.NET.Native.Runtime.2.0_2.0.25709.0_x64__8wekyb3d8bbwe.appx /dependencypackagepath:C:\\Apps\334CH\DELL\334CH\Microsoft.VCLibs.140.00_14.0.27323.0_x64__8wekyb3d8bbwe.appx /dependencypackagepath:C:\\Apps\334CH\DELL\334CH\Microsoft.NET.Native.Framework.2.0_2.0.27427.0_x86__8wekyb3d8bbwe.appx /dependencypackagepath:C:\\Apps\334CH\DELL\334CH\Microsoft.NET.Native.Runtime.2.0_2.0.25709.0_x86__8wekyb3d8bbwe.appx /dependencypackagepath:C:\\Apps\334CH\DELL\334CH\Microsoft.VCLibs.140.00_14.0.27323.0_x86__8wekyb3d8bbwe.appx /licensepath:C:\\Apps\334CH\DELL\334CH\11023d4f34c14610a6161cf4fb3c0d78_License1.xml /Region="all"
dism /online /add-provisionedappxpackage /packagepath:c:\dell\5NT2Y\RstHsaBridge_17.5.1005.0_x64_bundle.appxbundle /dependencypackagepath:c:\dell\5NT2Y\Microsoft.VCLibs.140.00.UWPDesktop_14.0.27323.0_x64__8wekyb3d8bbwe.appx /licensepath:c:\dell\5NT2Y\2ab1a93c7f5944c7a5d2413b3f1decaf_License1.xml /Region="all"
dism /online /add-provisionedappxpackage /packagepath:c:\dell\8R3T7\2ccd06ab93a5461080ec95e9acfddb44.appxbundle /dependencypackagepath:c:\dell\8R3T7\Microsoft.NET.Native.Framework.1.7_1.7.27413.0_x64__8wekyb3d8bbwe.appx /dependencypackagepath:c:\dell\8R3T7\Microsoft.NET.Native.Runtime.1.7_1.7.25531.0_x64__8wekyb3d8bbwe.appx /dependencypackagepath:c:\dell\8R3T7\Microsoft.VCLibs.140.00_14.0.26706.0_x64__8wekyb3d8bbwe.appx /dependencypackagepath:c:\dell\8R3T7\Microsoft.NET.Native.Framework.1.7_1.7.27413.0_x86__8wekyb3d8bbwe.appx /dependencypackagepath:c:\dell\8R3T7\Microsoft.NET.Native.Runtime.1.7_1.7.25531.0_x86__8wekyb3d8bbwe.appx /dependencypackagepath:c:\dell\8R3T7\Microsoft.VCLibs.140.00_14.0.26706.0_x86__8wekyb3d8bbwe.appx /licensepath:c:\dell\8R3T7\2ccd06ab93a5461080ec95e9acfddb44_License1.xml /Region="all"
dism /online /add-provisionedappxpackage /packagepath:c:\dell\9R2CY\d8eb3d301c8e44c893460c573e2524e3.appx /dependencypackagepath:c:\dell\9R2CY\Microsoft.NET.Native.Framework.2.1_2.1.27427.0_x64__8wekyb3d8bbwe.appx /dependencypackagepath:c:\dell\9R2CY\Microsoft.NET.Native.Runtime.2.1_2.1.26424.0_x64__8wekyb3d8bbwe.appx/dependencypackagepath:c:\dell\9R2CY\Microsoft.VCLibs.140.00_14.0.27323.0_x64__8wekyb3d8bbwe.appx /dependencypackagepath:c:\dell\9R2CY\Microsoft.NET.Native.Framework.2.1_2.1.27427.0_x86__8wekyb3d8bbwe.appx /dependencypackagepath:c:\dell\9R2CY\Microsoft.NET.Native.Runtime.2.1_2.1.26424.0_x86__8wekyb3d8bbwe.appx /dependencypackagepath:c:\dell\9R2CY\Microsoft.VCLibs.140.00_14.0.27323.0_x86__8wekyb3d8bbwe.appx /licensepath:c:\dell\9R2CY\d8eb3d301c8e44c893460c573e2524e3_License1.xml /Region="all"
dism /online /add-provisionedappxpackage /packagepath:c:\dell\CPWK1\99a6dd26bc5645b3a738200b2f69ca51.appxbundle /licensepath:c:\dell\CPWK1\99a6dd26bc5645b3a738200b2f69ca51_License1.xml /Region="all"
dism /online /add-provisionedappxpackage /packagepath:c:\dell\NXM09\5fb8f189f2804baeb42a158867b0ba1d.appx /licensepath:c:\dell\NXM09\5fb8f189f2804baeb42a158867b0ba1d_License1.xml /Region="all"
dism /online /add-provisionedappxpackage /packagepath:c:\dell\P17DD\6b148b557f42489bad3fd35943962277.appxbundle /dependencypackagepath:c:\dell\P17DD\Microsoft.NET.Native.Framework.2.2_2.2.27405.0_x64__8wekyb3d8bbwe.appx /dependencypackagepath:c:\dell\P17DD\Microsoft.NET.Native.Runtime.2.2_2.2.27328.0_x64__8wekyb3d8bbwe.appx /dependencypackagepath:c:\dell\P17DD\Microsoft.VCLibs.140.00_14.0.27323.0_x64__8wekyb3d8bbwe.appx /dependencypackagepath:c:\dell\P17DD\Microsoft.NET.Native.Framework.2.2_2.2.27405.0_x86__8wekyb3d8bbwe.appx /dependencypackagepath:c:\dell\P17DD\Microsoft.NET.Native.Runtime.2.2_2.2.27328.0_x86__8wekyb3d8bbwe.appx /dependencypackagepath:c:\dell\P17DD\Microsoft.VCLibs.140.00_14.0.27323.0_x86__8wekyb3d8bbwe.appx /licensepath:c:\dell\P17DD\6b148b557f42489bad3fd35943962277_License1.xml /Region="all"
dism /online /add-provisionedappxpackage /packagepath:C:\Apps\YR2T2\560274d333d4453891d8ec26f03f7a7c.appxbundle /dependencypackagepath:C:\Apps\YR2T2\Microsoft.NET.Native.Framework.2.0_2.0.27427.0_x64__8wekyb3d8bbwe.appx /dependencypackagepath:C:\Apps\YR2T2\Microsoft.NET.Native.Runtime.2.0_2.0.25709.0_x64__8wekyb3d8bbwe.appx /dependencypackagepath:C:\Apps\YR2T2\Microsoft.VCLibs.140.00_14.0.27323.0_x64__8wekyb3d8bbwe.appx /dependencypackagepath:C:\Apps\YR2T2\Microsoft.NET.Native.Framework.2.0_2.0.27427.0_x86__8wekyb3d8bbwe.appx /dependencypackagepath:C:\Apps\YR2T2\Microsoft.NET.Native.Runtime.2.0_2.0.25709.0_x86__8wekyb3d8bbwe.appx /dependencypackagepath:C:\Apps\YR2T2\Microsoft.VCLibs.140.00_14.0.27323.0_x86__8wekyb3d8bbwe.appx /licensepath:C:\Apps\YR2T2\560274d333d4453891d8ec26f03f7a7c_License1.xml /Region="all"
Cisco Router VRF's are virtual routers. Basically Cisco version of HyperV/VMWare.
The advantage of this is that you can take a single internet connection/MPLS connection and break it into 2 connections. Each connection will have its own outside-ip and inside-ip.
When this happens, the routes move from the physical connection to the virtual connection/VRF connections.
Show VRF connections:
show vrf
Show VRF routes:
show ip route vrf vrf-name-here
Add VRF route:
enable
config t
router bgp 65000
network 10.162.116.0
address-family ipv4 vrf vrf-name-here
network 10.162.116.0
exit-address-family
exit
ip route vrf vrf-name-here 10.162.116.0 255.255.255.0 10.162.100.1
(The above is: subnet subnet-mask gateway)
exit
Verify the config and save it as the startup config:
show run
copy run start
The June 2020 updates have caused problems.
To fix, Microsoft has put out an update. Found here (select your Windows version on the left-hand side):
https://support.microsoft.com/en-us/help/4555932
The trick is that the update will not be pushed out through Windows Updates and it will not be pushed out through Windows Server Updates (WSUS).
So the only option is to get it from Windows Catalog.
Here is how to download:
wget "http://download.windowsupdate.com/c/msdownload/update/software/updt/2020/06/windows10.0-kb4567512-x64_2ea636c671529de2154d48a1181c0f02cd919da5.msu" -outfile "windows10.0-kb4567512-x64_2ea636c671529de2154d48a1181c0f02cd919da5.msu"
Here is how to install:
wusa.exe "c:\installs\windows10.0-kb4567512-x64_2ea636c671529de2154d48a1181c0f02cd919da5.msu"
Open Outlook 365. The Windows Security Box shows. You type in the password. The box shows again. And again. And again. What gives?
This could happen for a few reasons.
1- check the DNS records. There should be an autodiscover on the company domain name. In other words: autodiscover.daknetworks.com should go somewhere. And that somewhere should be correct.
2- check the DNS records. If there is more than 1 domain, then the autodiscover needs to be on all of the domains. In other words, autodiscover.daknetworks.net should go somewhere as well. That somewhere should be the same somewhere as the main domain.
3- check the Control-Panel > Credential Manager. Close Outlook. Delete any username/password that indicates Outlook. If there are incorrect username & password saved in there, they will be used to access the email. Since the username/password are incorrect, it will ask for the correct username/password.
4- check the registry at:
HKEY_CURRENT_USER\SOFTWARE\Microsoft\Office\16.0\Outlook\AutoDiscover\
There are 2 parts to Outlook. The client software, what you are using on your system, and the server software, what the entire company is using to store/send/receive email.
Beginning with Outlook 2016/Outlook 365 some of the options to manually set what happens are removed in an effort to try to make setup easier.
If you have Outlook 365, then most likely you have Microsoft 365 for the company and it tries to automatically connect to the Microsoft 365 server.
But if you have Outlook 365 and have a private Exchange server, that can cause a mismatch. This results in Outlook always asking for a username/password for the Microsoft 365 server.
Outlook 365 automatically goes through a list to get autodiscover information. This is as follows:
- PreferLocalXML
- Office 365 | ExcludeExplicitO365Endpoint
- Root domain look up (Fancy way of saying it queries the A record) | ExcludeHttpsRootDomain
- Secure URL look up | ExcludeHttpsAutoDiscoverDomain
- Local Autodiscover (SCP object) | ExcludeScpLookup
- HTTP redirect | ExcludeHttpRedirect
- SRV record look up | ExcludeSrvRecord
- Last Known URL | ExcludeLastKnownGoodURL
To skip a method, this is set via a registry edit. All items below skip/exclude the method of finding the AutoDiscover settings except the PerferLocalXML setting which dictates that a local override is to be used:
reg add HKEY_CURRENT_USER\Software\Microsoft\Office\16.0\Outlook\AutoDiscover /t REG_DWORD /v PerferLocalXML /d 1
reg add HKEY_CURRENT_USER\Software\Microsoft\Office\16.0\Outlook\AutoDiscover /t REG_SZ /v domain-name-here.tld /d 'C:\path\to\autoDiscover-domain-name-here.tld.xml'
reg add HKEY_CURRENT_USER\Software\Microsoft\Office\16.0\Outlook\AutoDiscover /t REG_DWORD /v ExcludeHttpRedirect /d 0
reg add HKEY_CURRENT_USER\Software\Microsoft\Office\16.0\Outlook\AutoDiscover /t REG_DWORD /v ExcludeHttpsAutoDiscoverDomain /d 1
reg add HKEY_CURRENT_USER\Software\Microsoft\Office\16.0\Outlook\AutoDiscover /t REG_DWORD /v ExcludeHttpsRootDomain /d 1
reg add HKEY_CURRENT_USER\Software\Microsoft\Office\16.0\Outlook\AutoDiscover /t REG_DWORD /v ExcludeScpLookup /d 1
reg add HKEY_CURRENT_USER\Software\Microsoft\Office\16.0\Outlook\AutoDiscover /t REG_DWORD /v ExcludeSrvRecord /d 1
reg add HKEY_CURRENT_USER\Software\Microsoft\Office\16.0\Outlook\AutoDiscover /t REG_DWORD /v ExcludeLastKnownGoodURL /d 1
reg add HKEY_CURRENT_USER\Software\Microsoft\Office\16.0\Outlook\AutoDiscover /t REG_DWORD /v ExcludeExplicitO365Endpoint /d 1
5- trial software. There might be Office trial software installed along side of the Office software:
NOTES:
-https://docs.microsoft.com/en-us/outlook/troubleshoot/domain-management/unexpected-autodiscover-behavior
-https://support.microsoft.com/en-us/help/3211279/outlook-2016-implementation-of-autodiscover
-https://docs.microsoft.com/en-us/Exchange/architecture/client-access/autodiscover?redirectedfrom=MSDN&view=exchserver-2019
-https://practical365.com/exchange-server/fixing-autodiscover-root-domain-lookup-issues-mobile-devices/
Windows 10 Activation Error | SLMGR
slmgr.vbs /dlv
-access denied: 0xc0000022
-software-protection service is not started (sppsvc).
-try to start: access denied
-regedit
-go to: HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows NT\CurrentVersion\SoftwareProtectionPlatform
-go to: HKEY_LOCAL_MACHINE\Software\Microsoft\Windows NT\CurrentVersion\Software Protection
-go to: HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\SPPSVC
-go to: HKEY_LOCAL_MACHINE\SYSTEM\WPA
-permissions
-USER: NT Service\SPPSVC
-add: FULL CONTROL
-restart
slmgr.vbs /dlv
Find the Activation Code.
slmgr.vbs /dli activation-code-here
Find the details.
changepk.exe /ProductKey 12345-12345-12345-12345-12345
NOTES:
https://digitalbamboo.wordpress.com/tag/windows-software-protection-will-not-start-access-denied-5/
Here are my travels getting QCA9377/ath10k working with Ubuntu 18.04 LTS.
The system needs both the driver and the firmware.
$lspci
02:00.0 Network controller: Qualcomm Atheros QCA9377 802.11ac Wireless Network Adapter (rev 31)
$ sudo dmesg | grep ath10k
[ 23.189587] ath10k_pci 0000:02:00.0: pci irq msi oper_irq_mode 2 irq_mode 0 reset_mode 0
[ 23.497366] ath10k_pci 0000:02:00.0: Direct firmware load for ath10k/pre-cal-pci-0000:02:00.0.bin failed with error -2
[ 23.497373] ath10k_pci 0000:02:00.0: Direct firmware load for ath10k/cal-pci-0000:02:00.0.bin failed with error -2
[ 23.553780] ath10k_pci 0000:02:00.0: Direct firmware load for ath10k/QCA9377/hw1.0/firmware-6.bin failed with error -2
[ 23.725428] ath10k_pci 0000:02:00.0: qca9377 hw1.1 target 0x05020001 chip_id 0x003821ff sub 17aa:0901
[ 23.725429] ath10k_pci 0000:02:00.0: kconfig debug 0 debugfs 1 tracing 1 dfs 0 testmode 0
[ 23.725786] ath10k_pci 0000:02:00.0: firmware ver WLAN.TF.1.0-00002-QCATFSWPZ-5 api 5 features ignore-otp crc32 c3e0d04f
[ 23.823833] ath10k_pci 0000:02:00.0: board_file api 2 bmi_id N/A crc32 8aedfa4a
[ 24.455129] ath10k_pci 0000:02:00.0: htt-ver 3.44 wmi-op 4 htt-op 3 cal otp max-sta 32 raw 0 hwcrypto 1
[ 25.139469] ath10k_pci 0000:02:00.0 wlp2s0: renamed from wlan0
https://www.dell.com/support/article/en-us/sln306440/killer-n1535-wireless-firmware-manual-update-guide-for-ubuntu-systems?lang=en
$cd /lib/firmware/ath10k/QCA9377/HW1
$cp WLAN.TF.2.1/firmware-6.bin_WLAN.TF.2.1-00016 firmware-6.bin
(Be sure to use the higher/newest firmware number)
$dmesg | grep -i "error\|warn\|fail"
[ 1.162573] RAS: Correctable Errors collector initialized.
[ 7.807736] EXT4-fs (sda5): re-mounted. Opts: errors=remount-ro
[ 23.497366] ath10k_pci 0000:02:00.0: Direct firmware load for ath10k/pre-cal-pci-0000:02:00.0.bin failed with error -2
[ 23.497373] ath10k_pci 0000:02:00.0: Direct firmware load for ath10k/cal-pci-0000:02:00.0.bin failed with error -2
[ 23.553780] ath10k_pci 0000:02:00.0: Direct firmware load for ath10k/QCA9377/hw1.0/firmware-6.bin failed with error -2
$ uname -r
4.15.0-99-generic
$sudo apt-get update
$sudo apt-get upgrade
$sudo apt-get dist-upgrade
$sudo nmcli dev wifi list
$ lsb_release -a
No LSB modules are available.
Distributor ID: Ubuntu
Description: Ubuntu 18.04.4 LTS
Release: 18.04
Codename: bionic
# v18.04.4 has a newer kernel but it is not installed automatically on LTS.
# Let's install the newer kernel:
$sudo apt install --install-recommends linux-generic-hwe-18.04 xserver-xorg-hwe-18.04
$ uname -r
5.3.0-51-generic
Let's say that you have an external domain that your company regurlarly works with. You want to customize some items for this external domain such as you want them to get out of office replys and you want the domain to not have a MailTip message that it is an external user.
New-RemoteDomain -DomainName externaldomain.tld -Name externaldomain
set-remotedomain externaldomain -IsInternal $true -AutoReplyEnabled $true -AutoForwardEnabled $true
No more MailTips for this set.
Get the details by:
get-remotedomain externaldomain |fl
If someone is set to Out of Office and you try to send them an email, before you hit the SEND button, you might get a message that states the Out of Office message. This is a MailTip. There are other MailTips as well. The most common are enabled by default. The advanced MailTips are disabled by default.
One advanced MailTip is a notice when sending an email to outside the company. This can be helpful for certain companies. Here is how to see the current settings:
To get the MailTip setting:
Get-OrganizationConfig |findstr /i mail
To set a MailTip to show when sending outside the company:
set-OrganizationConfig -MailTipsExternalRecipientsTipsEnabled $true
Ideally, I wanted to turn this on for a group of people but leave it off for everyone else. I could not find a way, so I just left it on for everyone. Going ISO27001 and getting certified will probably encourage this setting anyway.
NOTES:
https://docs.microsoft.com/en-us/exchange/clients-and-mobile-in-exchange-online/mailtips/mailtips
https://docs.microsoft.com/en-us/powershell/module/exchange/organization/set-organizationconfig?view=exchange-ps
Here is how to diagnose remotely.
NOTES:
Here is the registry key to change the CATEGORY (1 = private, 0 = public):
HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows NT\CurrentVersion\NetworkList\Profiles
Microsoft Teams has its own Powerhell Module. Please see the article on connecting to Azure/Office365.
Once connect to Microsoft Teams, you have a few options:
See all Teams:
get-teams
See all Teams a user is a member of:
get-teams -user
NOTES:
https://docs.microsoft.com/en-us/powershell/module/teams/?view=teams-ps
See Soft Deleted Accounts in AzureAD | Restore Soft Deleted Accounts in AzureAD
To see all the accounts in AzureAD:
Get-MsolUser -All $true
Get-AzureADUser -All $true
To see all the "Guest" accounts in AzureAD:
Get-MsolUser -All $true | ? {$_.UserType -eq "Guest"}
Get-AzureADUser -All $true |where {$_.UserType -eq 'Guest'}
To get the details:
Get-AzureADUser -All $true |where {$_.UserType -eq 'Guest'} |select objectid,userprincipalname
This will return the userprincicpal names of the guest accounts. Usually in the format of:
accountname_domainoutside.com#EXT#@tenant-name-internal.onmicrosoft.com
If you delete a "guest" user or "member" user, the account is "soft-deleted" and is still in AAD. The account will be in this state of 30 days until the account is permanently deleted:
Remove-MsolUser -UserPrincipalName
Remove-AzureADUser -ObjectID
While the account is in this state, the account can be restored. However, the account cannot be added/invited to another Team.
To view account in the state of "soft-deleted":
Get-MsolUser -All -ReturnDeletedUsers
Get-AzureADMSDeletedDirectoryObject -Id aa644285-eb75-4389-886e-7233f096984c
This doesn't help much because we don't know the ObjectId. The only way I could find the ID is by looking at the AAD logs and filter for "Delete User".
To look at the logs, the AzureADPreview module must be installed:
Install-module AzureADPreview
After the AzureADPreview module is installed, run the following to check the logs for user deletion:
Get-AzureADAuditDirectoryLogs -Filter "category eq 'UserManagement' and OperationType eq 'Delete'" |ft
(The "Correlation ID" is the one you want.)
To permanently delete/hard-delete a guest:
Remove-MsolUser -UserPrincipalName
Remove-AzureADMSDeletedDirectoryObject -Id aa644285-eb75-4389-886e-7233f096984c
To restore an account:
Restore-MsolUser -UserPrincipalName
Restore-AzureADMSDeletedDirectoryObject -Id aa644285-eb75-4389-886e-7233f096984c
NOTES:
Get-AzureADMSDeletedUser/Restore-AzureADMSDeletedDirectoryObject does not exist, yet.
AzureAD Module v2.0 documentation: https://docs.microsoft.com/en-us/powershell/module/AzureAD/?view=azureadps-2.0
AzureAD v2.0-preview documentation: https://docs.microsoft.com/en-us/powershell/module/AzureAD/?view=azureadps-2.0-preview
(Check out the difference in the documentation for "Deleted Objects" section to get a feel of where development is happening.)
Fail2Ban is amazing. It is a python script that monitors the apache logs and if it finds something bad, it blocks the IP address for a certain amount of time.
Overall config:
/etc/fail2ban/fail2ban.conf
Defining filter list:
/etc/fail2ban/jail.conf
Defining individual filters based on regex:
/etc/fail2ban/filter.d/filter-name.conf
Defining ignorecommands:
/etc/fail2ban/filter.d/ignorecommands/ignorecommand
You can test by using filters using fail2ban-regex
fail2ban-regex /var/log/httpd/access_log /etc/fail2ban/filter.d/apache-scan.conf
Or with an ignorecommand:
fail2ban-regex /var/log/httpd/access_log /etc/fail2ban/filter.d/apache-scan.conf /etc/fail2ban/filter.d/ignorecommands/ignorecommand
It will even pick up the ignorcommands already in the filter-name.conf:
fail2ban-regex /var/log/httpd/access_log /etc/fail2ban/filter.d/apache-scan.conf /etc/fail2ban/filter.d/apache-scan.conf
You can print the matches:
fail2ban-regex --print-all-matched /var/log/httpd/access_log /etc/fail2ban/filter.d/apache-scan.conf
There are a bunch of filters already available. It is just a matter of enabling them and defining them with a reach-back number (ie within the last 24 hours), a miss number (ie 3 strikes) and a block time (2 hr, 2 day, etc).
Since I've noticed that most traffic is through bad bots, that happens to be one of my favorites.
Create Shared Calendar
You have a few options.
I chose to setup a room account. This seems to be the most in line with what the client wants.
Let's say there is a world wide pandemic. Everyone suddenly wants-to/required-to work from home. How do you license everyone for Skype-for-Business/Teams? Here's how:
get-msoluser -maxresults 1000 | set-msoluser -usagelocation US | set-msoluserlicense -AddLicenses "foodomain:TEAMS_COMMERCIAL_TRIAL"
Now everyone is licensed for Skype-for-Business/Teams.
The problem becomes that there are accounts that should not be licensed; namely the "Health" mailboxes.
Here is how to find them:
get-msoluser -maxresults 1000 |where {$_.islicensed -eq $true -and $_.signinname -like "*Health*"}
Here is how to unlicense them:
get-msoluser -maxresults 1000 |where {$_.islicensed -eq $true -and $_.signinname -like "*Health*"} |set-msoluserlicense -removelicenses "foodomain:teams_commercial_trial"
Let's say you have an Office 365 Group. You add a bunch of people. They add events to the calendar. Everyone is getting the calendar invites. They don't want that.
OK, first step is to delete the Office 365 Group through the GUI. Easy enough.
Now it still shows in Outlook. We want it completely gone.
It will show the ID.
Want to create a dynamic group for Office 365 Groups?
In Azure Active Directory, you should be able to create a group that is set dynamically depending on rules. This can be done through something called RULE-BUILDER.
It can be done. But it requires a P1 license for every account a part of the Office 365 Group/Unified-Group. This is $6 per month.
1-start POWERSHELL (as-admin).
2-type: Import-Module AzureADPreview
3-type: $LiveCred = Get-Credential
4-type in your username/password.
5-type: Connect-AzureAD -Credential $LiveCred
6-type: get-azureadmsgroup
7-type: get-azureadmsgroup -id 6541651431314646546541 |fl
You will see that MembershipRule and MembershipRuleProcessingState are blank. Let's set those items (2 options are given for MembershipRule as example).
Requires a P1 license. $6/user/month.
NOTES:
https://docs.microsoft.com/en-us/azure/active-directory/users-groups-roles/groups-dynamic-membership
https://docs.microsoft.com/en-us/powershell/module/azuread/new-azureadmsgroup?view=azureadps-2.0
Do you have Skype for Business? If so, you either have a Lync server on-site (Lync is the former name of Skype for Business) or you have a cloud service with Office-365.
If you have an Office-365 service, do you want to control Skype for Business through powershell? Here's how:
1-install SKYPE-FOR-BUSINESS POWERSHELL-MODULE: https://www.microsoft.com/en-us/download/confirmation.aspx?id=39366
2-start POWERSHELL (as-admin).
3-type: Import-Module SkypeOnlineConnector
4-type: $LiveCred = Get-Credential
5-type in your username/password.
6-type: $sfbSession = New-CsOnlineSession -Credential $LiveCred
7-type: Import-PSSession $sfbSession
type: Get-CsConferencingPolicy -identity global
type: Set-CsConferencingPolicy –Identity global –EnableDialInConferencing $True
Office365 Groups | Unified Groups
Typically, Exchange has Distribution Groups. An email is sent to the group and everyone in the group receives a copy of the email.
Office365-Groups or Unified-Groups are now available.
How is that different? Why would I want an Office365 Group instead of a traditional Distribution Group.
Mainly because there are the following additional features:
The following article actually says it better than I can:
new-unifiedgroup foogroup
Add-DistributionGroupMember
Upgrade-DistributionGroup -DlIdentities
When I tried to upgrade one DistributionGroup to a UnifiedGroup, I got an error message, "ErrorReason: The specified distribution group is not eligible to be upgraded or you are not allowed to upgrade this distribution group."
What gives?
Well, this is because the Owner of the DistributionGroup was an unlicensed account, the Office365 Admin. Changing the owner to a licensed account, allowed the upgrade to happen.
Enabling Perfect Forward Secrecy | Fixing Perfect Forward Secrecy
Using ssllabs.com to test the certificate on a server will grade the certificate with a score (A, B, C, D, F). The grade was capped to B due to Perfect Forward Secrecy and gave the following for a reference:
https://www.digicert.com/kb/ssl-support/ssl-enabling-perfect-forward-secrecy.htm
OK, I don't know what Perfect Forward Secrecy is. All I really care about is getting the grade to A. What do I have to do?
Reading the link, I thought the certificate was incorrect and started to look for how to recreate the certificate using ECDHE instead of RSA. That is because of the lines, "Instead of using the RSA method for exchanging session keys, you should use the Elliptic Curve Diffie-Hellman (ECDHE) key exchange" and my inability to understand where I "can still use the RSA public-key cryptosystem as the encryption algorithm, just not as the key exchange algorithm."
Recreating the certificate is incorrect. The certificate is fine using the instructions found in the other article on this site.
The solution is found in the Apache/HTTPD server with the settings found in the following file on the server:
/etc/httpd/config/httpd.conf
The server already had the following:
SSLCipherSuite HIGH:!SSLv2:!ADH:!aNULL:!MD5:!RC4
SSLProtocol all -SSLv2 -SSLv3 -TLSv1
#SSLHonorCipherOrder on
All I had to do was turn on the SSLHonorCipherOrder:
SSLHonorCipherOrder on
And while I was at it, turn off TLSv1.1 since that was removed in January 2020 from most major browsers:
SSLProtocol all -SSLv2 -SSLv3 -TLSv1 -TLSv1.1
That left us with:
SSLCipherSuite HIGH:!SSLv2:!ADH:!aNULL:!MD5:!RC4
SSLProtocol all -SSLv2 -SSLv3 -TLSv1 -TLSv1.1
SSLHonorCipherOrder on
Restart Apache/HTTPD with:
apachectl -k restart
Enjoy the grade of letter A!
NOTES:
-use the following to see what ciphers are accepted: openssl ciphers -v
-the server didn't have the option to turn on the CipherOrder, I had to create a template fragment called 35SSL10SSLHonorCipherOrder and filed bug 10916. This will probably make its way into the base.
-for the curious, the following are the short steps:
config setprop modSSL HonorCipherOrder on
config setprop httpd-e-smith TLSv1.1 disabled
signal-event domain-modify
signal-event email-update
Skype for Business Microphone Not Working
Here's how to fix:
Installing AutoCad from AutoDesk. Result:
Here's how to fix:
Go to run.
Type ‘regedit’
click ‘ok’.
[HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows\CurrentVersion\Explorer\Shell Folders]
Check the location for “Common Documents”
It will be pointing to a non-existent location Eg. "Common Documents"="C:\\Users\\Public\\Documents"
Change the value data of common document as: "Common Documents"="d:\\Users\\Public\\Documents"
OR
create that non-existent folder Run AutoCAD 2014 setup again
Since I lose this all the time and spend too much time trying to find it again, here is a link to the Dell monitor guide:
Upgrade from Windows Server 2008 to Server 2012 R2 Fails on VMWare. There is no reason why. Then it rolls back to Windows Server 2008.
The anwser is to remove the RESERVED PARTITION. If you look at the device manager, there will be 2 partitions; 1 for the RESERVED PARTITION and 1 for WINDOWS.
1- set the main Windows parition as the boot:
Run command prompt as administrator
Type: bcdboot c:\windows /s c:
(You should get a message that states: Boot files successfully created.)
Open Disk Management, right-click on your C: drive and select Mark Partition as Active.
Reboot
2- remove the RESERVED PARTITION.
Edit the VM in WMWare to remove the RESERVED PARTITION HARD DRIVE. This will be the lowest partition size.
Reboot
That should do it!
If not, you might have to boot from a install ISO, go to REPAIR, ADVANCED, CMD and fiddle with DISKPART and BOOTREC.
Let's say you have a service installed but don't want the user to uninstall the service by accident.
HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows\CurrentVersion\Uninstall\
OR
HKEY_LOCAL_MACHINE\SOFTWARE\Wow6432Node\Microsoft\Windows\CurrentVersion\Uninstall\
Find Hostname from IP Address
Let's say you have a large internal global network and you have an IP address that is slamming your SAP server that is coming from a different network segment with a different DNS server.
How do you know what host that is?
In a large network, there might be different domains and different DNS servers. You can query your local DNS server:
nslookup 1.2.3.4
But the local DNS won't find it because the host is not registering with that Name Server.
So to make this work, find the DNS server on that network segment. Sometimes using a traceroute helps here:
tracert 10.20.30.40
This will show the network hops. Hopefully this will narrow down the DNS server for that segment and query it, like this:
nslookup 10.20.30.40 11.22.33.44
It will return the FDQN and IP address.
/WORK IN PROGRESS - DO NOT ATTEMPT/
My work with PXE boot was back in 2007 with BARTPE. A new project has come up and I need it again.
{{Languages}}
==PXE booting to ISO==
===Goal===
We want to boot ISO images via PXE (rather than through CD). This means that, as long as we have enough RAM in the local pc's, we can boot WINPE or any LIVE CD (such as KNOPPIX, PCLINUXOS, UBCD, etc).
===Assumptions===
You are a network/server administrator and know what TFTP, LIVEISO, PE and PXE -a network boot- means. You have a running SME SERVER and your SME SERVER is your DHCP server.
===Install TFTP package on your SME SERVER===
-install SMESERVER-TFTP-SERVER on your SME SERVER: http://wiki.contribs.org/Tftp_server
yum --enablerepo=smecontribs install smeserver-tftp-server
-install SMESERVER-THINCLIENT on your SME SERVER: https://wiki.contribs.org/Thinclient
yum --enablerepo=smecontribs install smeserver-thinclient
-install SMESERVER-THINCLIENT-TS on your SME SERVER: https://wiki.contribs.org/Thinclient_usage
wget http://distro.ibiblio.org/smeserver/contribs/trevorb/7.x/Thinclient/smeserver-thinclient-ts-2.2-1.noarch.rpm
Access SERVER-MANAGER > Thin-Client panel.
Click to add another Thin Client Distribution
Upload smeserver-thinclient-ts-2.2-1.noarch.rpm
You now have a /tftpboot directory on the SME-SERVER.
Inside the /tftpboot directory is another directory /tftpboot/thinclient directory.
Inside the /tftpboot/thinclient directory are the files necessary to make the PXE happen.
===Create TFTPBOOT structure on your SME SERVER===
-we need to move the files into the proper locations.
-change to the directory
cd /tftpboot
-create a GRAPHICS, ISO, COM32 directories
mkdir graphics iso com32
-move the pxelinux.0 file and the pxelinux.cfg directory to the /tftpboot
mv ./thinstation/pxelinux.0 ./
mv ./thinstation/pxelinux.cfg ./
-finally, move the thinstation directory to the iso directory and create any other directories in iso that you want for iso distributions. For example, BARTPE and MEMDISK
mv ./thinstation ./iso
mkdir ./iso/bartpe ./iso/memdisk
You now have the following structure in the /tftpboot directory:
graphics (The graphics directory is for graphics, naturally.)
iso (The iso directory is for the iso files.)
pxelinux.cfg (The pxelinux.cfg directory is the boot menu.)
pxelinux.0 (This file is what boots the remote system.)
com32 (The com32 directory is for the menu).
===Download Syslinux Executable===
To boot ISO images we need an executable that can handle ISO's. Lucky for us, a bunch of executables for each distribution is already available in a project called SYSLINUX. SYSLINUX actually encompasses PXELINUX, ISOLINUX and EXTLINUX.
wget: https://mirrors.edge.kernel.org/pub/linux/utils/boot/syslinux/6.xx/syslinux-6.03.zip
unzip syslinux-6.03.zip
Inside the "bios" directory you will find different executables for different distributions. For example, MEMDISK is a special executable (legacy) that can boot floppy images, hard disk images and some ISO.
Let's copy the file bios\memdisk\memdisk to /tftpboot/iso/memdisk anyway that you can, such as through SCP.
In addition, let's copy the following files to the root of /tftpboot:
syslinux-6.03\bios\com32\elflink\ldlinux\ldlinux.c32
syslinux-6.03\bios\com32\menu\vesamenu.c32
syslinux-6.03\bios\gpxe\gpxelinux.0 (You already have the pxelinux.0 but pgxelinux.0 provides an additional way to boot which adds a few options such as booting over ftp, http, etc)
===Create an Windows-based ISO on your local pc===
Copy or download the ISO files to the iso directory.
++++++++++++++++++++++++++++++++++++++++++++++++++
++(no longer supported, here for archival purposes only)
++++++++++++++++++++++++++++++++++++++++++++++++++
===Create an Windows-based ISO on your local pc===
====BARTPE====
-download BARTPE on your local pc: http://www.nu2.nu/pebuilder/
-create a BARTPE disk using WINDOWS SERVER 2003 source (i386 directory)
-or if you don't have a WINDOWS SERVER 2003 source, you can use a WINDOWS XP SP2 source (i386 dir) but you'll have to replace the following file with a newer version from the WINDOWS SERVER 2003 SP1 download (see next section):
C:\pebuilder3110a\BartPE\I386\SYSTEM32\DRIVERS\ramdisk.sys
-you now have a BARTPE.ISO (on your local pc)
====Obtain WINDOWS SERVER 2003 SP1 files needed====
-download the WINDOW 2003 SERVER SP1:
https://www.google.com/search?q=WindowsServer2003-KB889101-SP1-x86-ENU.exe
(You now have a file called: WindowsServer2003-KB889101-SP1-x86-ENU.exe)
-open WINRAR to open the WindowsServer2003-KB889101-SP1-x86-ENU.exe file (the W2K3 file is just a self-extracting ZIP/CAB/TAR file)
-extract only the following files from the W2K3SP1:
ntdetect.com
ramdisk.sy_
setupldr.ex_
startrom.n1_
-The underscore files are compressed. We need to decompress/expand them:
expand ramdisk.sy_
expand setupldr.ex_
expand startrom.n1_
(You only need the ramdisk.sys file if you don't have a WINDOWS 2003 SERVER source to build your BARTPE from. See above section.)
===Transfer files to SME SERVER===
-copy the following files to the SME SERVER in the "/tftpdboot/iso/bartpe" directory:
ntdetect.com
setupldr.exe
startrom.n12
bartpe.iso
===Work with files in the TFTPDBOOT dir===
-the files are case-sensitive and need to be named exactly as follows:
ntdetect.com (lower-case)
NTLDR (rename the setupldr.exe to NTLDR, all caps)
startrom.0 (rename the startrom.n12 to startrom.0) (This is a ZERO)
BARTPE.ISO (all caps)
-create a winnt.sif:
vi winnt.sif
-the contents of the winnt.sif file:
[SetupData]
BootDevice = "ramdisk(0)"
BootPath = "\i386\System32\"
OsLoadOptions = "/noguiboot /fastdetect /minint /rdexportascd /rdpath=iso/bartpe/bartpe.iso"
++++++++++++++++++++++++++++++++++++++++++++++++++
++++++++++++++++++++++++++++++++++++++++++++++++++
====Create DEFAULT file====
-change to pxelinux.cfg directory and create the contents of the default file:
cd pxelinux.cfg
vi default
Each distribution iso will have a LABEL and a full-path-to-the-kernel. Currently, we have only 3; BARTPE, THINSTATION and KNOPPIX.
-the contents of the default file (note that this is case-sensitive reference the iso filename):
prompt 1 implicit 0 timeout 600 default foo
LABEL bartpe kernel iso/bartpe/startrom.0
LABEL thinstation
kernel iso/thinstation/vmlinuz
append initrd=iso/thinstation/initrd ramdisk_blocksize=4096 root=/dev/ram0 ramdisk_size=524288 console=ttyS3 vga=791
LABEL knoppix
kernel iso/memdisk/memdisk
append initrd=iso/knoppix/knoppix.iso iso
===Summary of contents of TFTPBOOT dir===
-graphics
-iso
--iso/bartpe
---iso/bartpe/BARTPE.ISO
---iso/bartpe/ntdetect.com
---iso/bartpe/NTLDR
---iso/bartpe/startrom.0
---iso/bartpe/winnt.sif
--iso/thinstation
---iso/thinstation/vmlnuz
---iso/thinstation/initrd
---iso/thinstation/thinstation.conf.network
--iso/memdisk
---iso/memdisk/memdisk
--iso/knoppix
---iso/knoppix/knoppix.iso
-pxelinux.cfg
--pxelinux.cfg/default
-pxelinux.0
-gpxelinux.0
-ldlinux.c32
-vesamenu.c32
===Boot client PC===
-that should do it! Start your client PC and boot from the network.
-it will boot the pxelinux.0 and try to use any config files.
-at the prompt, when it asks for an image type: {bartpe | thinstation | knoppix}
-pretty cool, huh?
===Advanced Menu===
It is possible to create submenus. Just create a plain text file in tftpboot/pxelinux.cfg/ directory and use the same format as the default. The file can be named tools, memorytest, recovery, etc anything you want.
===Advanced Modern OS===
The problem becomes that modern OS's renders the memdisk approach useless because if you loaded the ISO with MEMDISK, once the kernel was read from the ISO and loaded into memory, the ISO data would be gone.
PHONE: Riiiiinnnnnngggg!!!! Riiiiinnnnnngggg!!!! Riiiiinnnnnngggg!!!!
ME: Hello
THEM: Yes, in Outlook, when I go my Deleted Items and click "Recover Deleted Items from Server" it only goes back 2 weeks.
Retention is how long something can be retrieved if it is deleted. By default, this is 14 days. This can be found with the RetainDeletedItemsFor value, like this:
get-mailbox foo.user |select RetainDeletedItemsFor
Now, there is also a retention on the MailboxDatabase (EDB) that covers all mailboxes on the EDB. This setting is the DeletedItemRetention value, like this:
Get-MailboxDatabase "mailbox.database.name" |select DeletedItemRetention
Note that Mailboxes will automatically get their settings from the Mailboxdatabase. To set custom settings, you must first disable using the Mailboxdatabase defaults, like this:
set-mailbox foo.user -UseDatabaseRetentionDefaults $false
Next, setting retention is like this:
set-mailbox foo.user -RetainDeletedItemsFor 30
Note that if you run this command while using the mailboxdatabase defaults, the setting will stay at the default value of 14.
Or in one command:
set-mailbox foo.user -UseDatabaseRetentionDefaults $False -RetainDeletedItemsFor 30
Open terminal.
First, find the DNS servers:
Ubuntu >= 15: nmcli device show | grep IP4.DNS
Ubuntu <= 14: nmcli dev list iface | grep IP4
Second, change the DNS servers using the GUI.
Third, restart the service without rebooting the system:
Ubuntu >= 15: sudo systemctl restart NetworkManager.service
Ubuntu <= 14: sudo service network-manager restart
Came across a PowerEdge 2950 with a PERC (raid controller) that needed Windows Server installed. The Windows Server ISO didn't have the PERC drivers and trying to inject the drivers into the Windows Server ISO failed.
Had to reset the DRAC:
Had to set the BIOS:
Had to use the Dell Systems Build and Update Utility (SBUU) v5.5.0 for this to work. This ISO is found here:
https://dl.dell.com/sysman/OM_v5.5.0_SUU_A00.ISO
Or the Dell System Management Tools and Documentation ISO here:
https://www.dell.com/support/home/us/en/04/drivers/driversdetails?driverid=p8v4x&oscode=wx64&productcode=poweredge-2950
Separate ISO's put together by running the following in command-prompt: copy /b om* OM_550_SUU_DVRPCK_A00.iso
After running through the options of the SBUU, the process looks for a DVD in the DVD drive. The process errors out if the DVD drive is unavailable and doesn't pick up the USB as the DVD. Go figure.
What makes this process difficult is because there are 54 downloads in the Dell Drivers web site for "SYSTEM-MANAGEMENT":
In addition, the downloads are broken up into:
I'm not certain if a newer SBUU would work (or anything else for that matter):
https://www.dell.com/support/driver/us/en/04/DriversDetails?driverId=YH0GX&fileId=3406550491
Each mailbox in Exchange 2013 can have access through different ways:
To see the options if they are set for TRUE/FALSE, use the get-casmailbox:
get-CASMailbox foo.user
To see for everyone:
get-casmailbox
To set OWA to be disabled:
set-casmailbox foo.user -OWAEnabled $false
So if you wanted to disable for everyone:
get-casmailbox | set-casmailbox -OWAEnabled $false
Likewise, if you want to do this with ActiveSync, the command is:
set-casmailbox foo.user -ActiveSyncEnabled $false
get-casmailbox | set-casmailbox -ActiveSyncEnabled $false
If you disable ACTIVESYNC, the account cannot get email on the MAIL app on iPhone. Most likely, you want to keep ACTIVESYNC turned on and OWA turned off.
In addition, you probably want to turn off EWS for the accounts. I've found that some 3rd party email apps (ie Blue Mail) use EWS to gather email rather than ACTIVESYNC. For whatever reason, this will not show in Exchange as a mobile device (ie Get-MobileDevice -Mailbox foo.user).
To disable EWS for a single account:
Set-CASMailbox foo.user -EWSEnabled $False
And to disable EWS for everyone:
get-casmailbox | set-casmailbox -EWSEnabled $false
Or it can be done on the entire Organization config:
Set-OrganizationConfig -EWSEnabled $False
Here you go:
Enable-WindowsOptionalFeature -Online -FeatureName Microsoft-Hyper-V -All
New-VM -Name MyMachine -path C:\installs\vm-machine -MemoryStartupBytes 512MB
New-VHD -Path C:\installs\vm-machine\MyMachine\mymachine.vhdx -SizeBytes 10GB -Dynamic
Add-VMHardDiskDrive -VMName MyMachine -path "C:\installs\vm-machine\MyMachine\mymachine.vhdx"
Set-VMDvdDrive -VMName MyMachine -ControllerNumber 1 -Path "C:\installs\vm-machine\MyMachine\connector-59.0.0.52.iso"
Adjust as needed.
Your Meeting Was Declined in Outlook/Exchange 2013. This resource does not accept meetings longer than 1440 minutes.
Resource rooms are set by default to 1440 minutes/24 hours/1 day.
To change, there is a different table than the one for get-mailbox, you have to use Get-CalendarProcessing | Set-CalendarProcessing.
To get the current settings:
Get-CalendarProcessing foo.resource |fl
You will see:
MaximumDurationInMinutes: 1440
To set for longer:
Set-CalendarProcessing foo.resource -MaximumDurationInMinutes 4320
Dell Command is a driver update tool that comes with a Dell computer system. You can run the tool via command line. Awesome!
Note that this is in v2.3/v2.4 and not in v3.0 (Yikes!) but is re-introduced in v3.1.
cd c:\program files (x86)\Dell\CommandUpdate
dcu-cli.exe
dcu-cli.exe /scan
dcu-cli.exe /applyUpdates
dcu-cli.exe /applyUpdates -updateType=driver,bios,firmware
It will go through find the drivers, download them and install them automatically.
Because this is via command line, this can be pushed out through the entire network.
Now Dell releases all in one driver packs (aka CAB files) for their business systems (Latitude, Precision, etc). You can download the CAB file in a central location and roll out the CAB file to the system (be certain to choose the right CAB file and match the CAB file name to the model number):
dcu-cli.exe" /driverRestore \\MyServer\MyRepositoryShare\E7470-win10-A11-F4MTJ.CAB
There is a Dell Command Deploy Driver Pack
https://www.dell.com/support/article/us/en/04/how14097/driver-pack-catalog?lang=en
DELL COMMAND UPDATE: https://www.dell.com/support/manuals/us/en/04/command-update-v2.4/dcu_ug_v2.4/command-line-interface-reference?guid=guid-92619086-5f7c-4a05-bce2-0d560c15e8ed&lang=en-us
DELL CAB FILES: https://www.dell.com/support/article/us/en/04/sln312414/dell-command-deploy-driver-packs-for-enterprise-client-os-deployment?lang=en
Want to set an out of office reply for an account in Exchange 2013? Here's how:
To get the current settings:
Get-MailboxAutoReplyConfiguration foo.user
To set the Out of Office reply:
Set-MailboxAutoReplyConfiguration foo.user -AutoReplyState Scheduled `-StartTime “10/14/2019” -EndTime “12/15/2019” `-ExternalMessage “Type External automatic reply here” ` -InternalMessage “Type External automatic reply here”
It can be tough to set escpecially if you have double-quotes. The backtick when used at the end of the line is used to join to the next line. Also, the backtick is used to escape the double-quote. Example for escaping quotes:
Set-MailboxAutoReplyConfiguration foo.user –AutoReplyState Scheduled `-StartTime “10/14/2019” -EndTime “12/15/2019” `–ExternalMessage “Hello,” `
I'm out of office due to sudden medical leave. Please contact Other User (
Thank you.
-InternalMessage “Hello,”
I'm out of office due
to sudden medical leave. Please contact Other User
(
Thank
you.
Once upon a time, Skype was Skype and everything was good. Then Microsoft bought them and everything became confusing; really confusing.
In another point in the time, Slack came into existence. It caught steam. All the cool kids used it, the marketing was a bit viral and the company went public company on the NYSE.
To compete, Microsoft developed Microsoft-Teams; the Microsoft version of Slack.
Microsoft added Teams to their Office365 packages so anyone with an Office365 account could use Microsoft Teams. But it still wasn't enough.
To make the offering more attractive, they offer Microsoft-Teams for free. This is up to 300 accounts on the same domain.
At this point Skype for Business is becoming Microsoft Teams:
https://docs.microsoft.com/en-us/microsoftteams/faq-journey
What is interesting is that if you have a Microsoft Teams License (free), you can use Skype for Business:
https://products.office.com/en-us/microsoft-teams/free
1- Signup for free Office365 account: https://portal.office.com
Unlicensed accounts are free. You cannot do anything per se but it doesn't cost anything, so there is no harm.
2- Sync with on-site Active Directory (if needed)
If you have an onsite AD, you can setup a separate server just for the purpose of syncing with Office365 Azure Active Directory.
Download Microsoft Azure Active Directory Connect here:
https://www.microsoft.com/en-us/download/details.aspx?id=47594
3- Assign Microsoft Teams License
You'll have to Connect to Office365/AzureAD via Powershell but once you do, you can perform 3 steps.
3a- assign a Location:
set-msoluser -UserPrincipalName
3b- check the Office365 Licenses
get-msoluser -UserPrincipalName
3c- assign a Microsoft Teams License
set-msoluserlicense -UserPrincipalName
4- Download Skype for Business Basic
To make matters worse, documentation will try to convince you to download the software at: https://portal.office.com/account#installs
While this is logical, this will not work if you have Office 2016/2019 installed. This is because the download is a click-to-run (c2r) application. C2R applications cannot be mixed with others.
The Skype for Business Basic Full Client (448.1 MB) is found here:
https://www.microsoft.com/en-us/download/details.aspx?id=49440
Or if you need to download in Powershell through wget:
wget 'https://download.microsoft.com/download/8/7/E/87E24B50-9C85-4B1D-A581-94AA037803F8/LyncEntry_bypass_ship_x64_en-us_exe/lyncentry.exe' -outfile 'lyncentry_x64.exe'
Typically, Skype for Business Basic needed an onsite Lync Server or an Offce365 account (Office 365 ProPlus, Office 365 Enterprise E3 or Office 365 Enterprise E4).
I guess because of the convergence of Skype for Business and Microsoft Teams, the Microsoft Teams license will work with Skype for Business Basic now.
Note that the download is called: lyncentry.exe
5- Install Skype for Business Basic
6- Login to Skype for Business Basic
That's it! It should work! Good job, well done!
Just like disabling Microsoft Telemetry, the Google Chrome Software Reporter Tool can become a pain. Let's turn it off.
In my other article about adding GPO ADMX files to control Chrome, I explain how to add the ADMX files to the GPO to control CHROME so I won't go through that again.
Save the GPO but don't forget to turn off User-Configuration: DETAILS > USER-CONFIGURATION-SETTINGS-DISABLED.
Apply GPO where needed.
Windows Telemetry does "stuff." I don't want it to do that "stuff." In certain cases, it hogs resources sometimes it becomes out of control.
But wait, there's more:
Save the GPO but don't forget to turn off User-Configuration: DETAILS > USER-CONFIGURATION-SETTINGS-DISABLED.
That's it! Link to all OU's necessary.
So routes in an MPLS cisco router can have the following codes; the highlighted ones are the most common I see:
Codes:
As elsewhere, you can see the routes by:
show ip route
Or you can search for a route by (ie search for routes to 10.116.x.x):
show ip route | incude 10.116
To add a route to the MPLS router nodes, the route must be added as a STATIC route to the node that is LOCAL to the subnet.
For example, we add a new node to the MPLS network. That new node has the following network as a LOCAL subnet: 10.116.0.10/32.
This network would show as the following:
L 10.116.0.10/32 is directly connected, GigabitEthernet0/1
The new node also has the following network as a subnet 10.116.15.0/24. The problem is that while the subnet at the location will already know about the subnet, the other locations will not know about the subnet until it is advertised/distributed across the MPLS network routers.
If you try to traceroute a address on the new subnet from a different location, the other routers will not know what to do and bounce the packet to the default route, causing a loop/bounce.
As stated above, to resolve, the STATIC route must be added to the router where the subnet is located:
S 10.116.15.0/24 [1/0] via 10.116.1.1
To add a static route:
enable
config t
ip route 10.116.15.0 255.255.255.0 10.116.1.1
(note that CIDR doesn't work. ie: ip route 10.251.10.0/24 10.162.100.2)
Once that is added, the other routers will pickup the route as a BGP route:
B 10.116.15.0/24 [20/0] via 10.162.131.38
B routes (BGP) will pick up routes from their neighbor. You can view by:
show ip bgp
O routes (OSPF routes) will pick up routes as well. You can view by:
show ip ospf
Let's say you have a bunch of files to rename. You want to minus the first 10 characters of each file. What's the best way?
It depends.
My favorite for small-to-medium batches is Total Commander. It understands REGEX and it shows the before-names and after-names before committing the command.
This should do it!
For powershell, the command will be something like:
get-childitem 'c:\path\to\file\*.txt | rename-item -newname { [string]($_.name).substring(8) }
Or if you need to split at an underscore "_".
Get-ChildItem'c:\path\to\file'|Rename-Item-NewName{ $_.BaseName.Split('_')[0]+ $_.Extension}
TeamViewer uninstall.
First, stop the service:
sc stop teamviewer
See if the service stopped:
sc query teamviewer
See if there is any TeamViewer process running:
powershell "ps |findstr /i team"
If there is a TeamViewer process running, taskill it:
taskkill /F /T /IM teamviewer.exe
Run the uninstall command:
"C:\Program Files (x86)\TeamViewer\uninstall.exe" /S
This information is in other articles that are posted but they can be overly complicated. This is the TLDR version.
From here you have the option to connect to different ENDPOINTS of Office365/AzureAD. The information is the same but data is displayed differently depending on which endpoint is being used.
The ENDPOINTS I use regularly are:
Note that all modules can be found here (although look closely as the names can be unnatural to some):
https://docs.microsoft.com/en-us/powershell/module/
If you want to see the installed modules in your current session, you can view by:
Get-InstalledModule
If you want to see all modules and their install location:
get-module -listavailable
To connect to the endpoints, a module must be installed into Powershell. So if this is the first time, depending on the endpoint,use the following
Note that this only has to be done once. After the module is installed into Powershell, it remains.
To install a few at the same time:
install-Module msonline,ExchangeOnlineManagement,AzureADPreview,Microsoft.Graph
Also note that since the AzureAd module is being actively developed, the "preview" module, or beta-version, has additional commands that the current release does not. However only one of the AzureAD modules (either AzureAD or AzureADPreview) can be installed at a time.
After the module is installed into Powershell, the connection is as follows:
It depends on what you are trying to do.
Here is how to unload/remove a module:
remove-Module ModuleNameHere
(ie: remove-Module AzureAD)
Here is how to uninstall a module:
Uninstall-Module ModuleNameHere
(ie: Uninstall-Module AzureAD)
Or if you have multiple versions:
Uninstall-Module AzureADPreview -AllVersions
As a refresher, get-msoluser and get-azureaduser are similar but provide information differently.
This is a case where it seems to be easier to use get-msoluser.
To see all accounts:
get-msoluser
That returns a maximum of 500 results in a command, so you can check with (20000 represents some really high number because 'unlimited' or 'all' doesn't exist):
get-msoluser -maxresults 20000
To search for a specific account:
get-msoluser -searchstr foo.user
To see if accounts are licensed:
get-msoluser -maxresults 20000 |where {$_.islicensed -eq $true}
To see if accounts are not licensed:
get-msoluser -maxresults 1000 |where {$_.islicensed -eq $false}
To see if accounts are not licensed and filter through the external contacts and healthmailboxes:
get-msoluser -maxresults 1000 |?{$_.islicensed -eq $false} |?{($_.UserPrincipalName -notlike "HealthMailbox*") -and ($_.userprincipalname -notlike "*#EXT#*")}
To see an example of the details of a licensed account for ADHOC:
get-msoluser -UserPrincipalName
IndirectLicenseErrors : {}
IsLicensed : True
LicenseAssignmentDetails : {Microsoft.Online.Administration.LicenseAssignmentDetail}
LicenseReconciliationNeeded : False
Licenses : {foodomain:RIGHTSMANAGEMENT_ADHOC}
To see an example of the details of an unlicensed account:
get-msoluser -UserPrincipalName
IndirectLicenseErrors : {}
IsLicensed : False
LicenseAssignmentDetails : {}
LicenseReconciliationNeeded : False
Licenses : {}
To assign a license to an account, you might think that set-msoluser has a key/value but they break it out to set-msoluserlicense (which is weird because there is no get-msoluserlicense). But before that is possible, the account must be set for USAGELOCATION (which is set-msoluser):
set-msoluser -UserPrincipalName
set-msoluserlicense -UserPrincipalName
Likewise for removing the license:
set-msoluserlicense -UserPrincipalName
What options are available for the license key?
Glad you asked. Here is how to get the options for your tenant:
Get-MsolAccountSku
If something doesn't show, it is because it has not been provisioned.
So it is easy to find out what USER is a member of what GROUP. Or vice-versa.
What is not as easily available is finding out what USER has access to another account. Or another way of putting it is; how to find mailboxes that have additional permissions than just their own?
Here's how:
Get-Mailbox | Get-MailboxPermission | where {$_.user.tostring() -ne "NT AUTHORITY\SELF" -and $_.IsInherited -eq $false} | Select Identity,User,@{Name='Access Rights';Expression={[string]::join(', ', $_.AccessRights)}}
Or if you need to create an Excel document out of it:
Get-Mailbox | Get-MailboxPermission | where {$_.user.tostring() -ne "NT AUTHORITY\SELF" -and $_.IsInherited -eq $false} | Select Identity,User,@{Name='Access Rights';Expression={[string]::join(', ', $_.AccessRights)}} | Export-Csv -NoTypeInformation mailboxpermissions-v1.csv
Notes:
This is found in the article for Remove Mailbox Permissions That Are Not Inherited but the info might be hidden there.
For whatever reason, I had an account in Azure AD that picked up the @foobar.onmicrosoft.com domain rather than the actual local domain. I suspect this happened because there was already an account manually created as a Global Admin so when the AD sync was happening, it could not create an account and defaulted to the onmicrosoft.com account.
In any regard, you can delete the account on Azure AD without affecting the Local AD. After the deletion, sync back to Azure AD from the Local AD.
These are the steps:
Set-ExecutionPolicy RemoteSigned
$LiveCred = Get-Credential
$Session = New-PSSession -ConfigurationName Microsoft.Exchange -ConnectionUri https://ps.outlook.com/powershell/ -Credential $LiveCred -Authentication Basic -AllowRedirection
Import-PSSession $Session -AllowClobber
Install-Module AzureAD
Install-Module MSOnline
Connect-MsolService -Credential $LiveCred
get-msoluser -searchstring foouser
get-MsolUser -ObjectId 33f85584-acde-4c23-aa00-d8ab654a258b
remove-MsolUser -ObjectId 33f85584-acde-4c23-aa00-d8ab654a258b
Connect-azuread -Credential $LiveCred
get-AzureADUser
get-azureaduser -searchstring fooname
Go to Azure Acive Directory > Users > Deleted Users
Select User
Permanently Delete
Then to sync back from the Local AD.
-connect directly to the system that has Azure AD Connect.
Check the schedule:
Get-ADSyncScheduler
Run the sync:
Start-ADSyncSyncCycle -PolicyType Delta
get-msoluser and get-azureaduser are pretty much the same in that they will provide the same basic details. They are different in that they connect to different endpoints of the service and therefore provide similar information but provide it differently.
In short, get-msoluser is the 'old way' and get-azureaduser is the 'new way.'
The problem is that the old way is easier to use and not everything is in the new way.
Of course you can use the DNS at the REGISTRAR (GoDaddy, Enom, etc) level but what if you have access to the server but not the domain?
Two files are needed:
The contents of the index.php file to redirect to the new web site:
header('Location: https://foo.tld');?>
The contents of the .htacess file to redirect any phantom links to the index page:
Options +SymLinksIfOwnerMatch RewriteEngine On RewriteCond %{REQUEST_FILENAME} !-f RewriteCond %{REQUEST_FILENAME} !-dRewriteRule . /index.php [L]
All this time and I never covered this... GPO, gpupdate, gpresult, rsop
You know GPO, right? The Default Domain Policy is the applied for the entire domain and should override the rest. Put the password stuff in this policy but nothing else.
The GPO's will apply automatically but if you need to do it now:
gpupdate /force
gpupdate /force /target:computer
To see what is being applied, type:
gpresult /r
It shows what server the system is connecting to, what GPO's are applying, what GPO's are not applying and what security-group is being applied. All useful information.
To see more info, use verbose mode:
gpresult /v
Note that the command will only show the USER gpo's. If you want to show the COMPUTER gpo's, the command should be run AS-ADMINISTRATOR.
Or if you need to run remotely:
gpresult /r /scope:computer
Groups are applied on login. If the group doesn't show, logout/login.
Since GPO's can overlap, the follow will show what GPO's are winning in case they are fighting: rsop.msc
Or a quicky to show password rules: net accounts /domain
On 2 separate occasions today, I ran into problems with NVMe drives. These are SSD drives on a chip through a pcie slot rather than a SATA connection.
The drives were Toshiba KXG60ZNV512G NVM and would BSOD coming out of sleep/hibernate.
Here are 10 steps to make sure you have the best NVMe experience.
1- Update the drive firmware. Be sure to match the model number (KXG60ZNV512G). Dell's web site provided the wrong drive firmware. This firmware would not install as the drive was not found on the system. I found the correct firmware by showing all downloads for the model (Precision 7530).
2- Update the bios. The bios needs to be built to work with an NVMe drive. So if the bios doesn't work, it may need updated.
3- Write down the bios settings for the drive and reset to the default bios settings. Reboot. After reboot, manually set the settings again. There are some settings that cannot be changed manually. If there are hidden settings the default should be appropriate. But we want to make sure we have the drive settings (probably RAID/RST) because we don't want to guess after the update. Changing them incorrectly produces a BSOD on bootup. Not the end of the world as it can be fixed.
4- In the bios, turn off the C-STATE. While we are at it, turn of SPEEDSTEP... ugh.
4- Update the chipset drivers.
5- Update the NVMe drivers. There are 4 providers of NVMe drivers:
Word on the street is that the OpenFabrics drivers perform best but let's stick with the crowd and use Intel RST drivers.
6- Manually install the drivers; UPDATE-DRIVERS > BROWSE > LET-ME-PICK > HAVE-DISK > choose IASTORAC.INF > Reboot.
7- Enable the Device Manager Write Caching Options by disabling the write cache buffer; DEVICE-MANAGER > DISK-DRIVES > RIGHT-CLICK > PROPERTIES > POLICIES > CHECKMARK "turn off windows write cache buffer."
8- Disable the Link Power Management (LPM). Open the Intel Rapid Storage Technology Software > PERFORMANCE > LINK-POWER-MANAGEMENT > DISABLE.
9- Set to ultimate performance. Windows has power settings for both plugged into power and for battery. If it is plugged in, use it for maximum performance. Some settings are hidden in the Windows UI, so set it via command line:
powercfg -s e9a42b02-d5df-448d-aa00-03f14749eb61
While we are at it, make sure the hibernation is off:
powercfg -h off
10- Have fun! Remember, if this "feels heavy," get someone else to do it for you. Here is a benchmark:
I wrote this email for a colleague who inquired about Webroot. After I finished the message and sent it, I realized that it was appropriate for a blog post:
Webroot is very good protection.
The installation is very simple with msi or exe options available. Both options are simple, silent and fast install. The command line looks something like this: msiexec.exe /i "wsasme.msi" ALLUSERS=1 /qn /norestart /log output.log GUILIC=664CG8545895728446C
Once installed, the protection has the following areas:
1-Real time Protection
2-Rootkit Protection
3-Web Protection
4-USB Protection
5-Firewall Protection
6-Identity Protection
7-Phishing Protection
8-DNS protection is available as well as an upgrade.
Scans are very fast and use little processor resources. A “deep” scan takes around 30 seconds. A “Full” scan takes around 30-60 minutes but this scan is not needed because of the central console.
All computers report back to a central console which is located here:
https://my.webrootanywhere.com
The console is a central place to monitor systems, control systems and will show which systems are clean and which systems have problems.
The console also controls the options for Webroot and will determine the settings for the software. One policy we like is the inability to uninstall the software. So even if a person has administrator rights, they are unable to remove Webroot. Uninstall is only performed by the console.
The console also gives limited control access to the systems. You can perform manual scans, lock the computer, restart the computer or restart in safe-mode. This is good when the system is out of the office and might have little control over the system through other access.
In the event that Webroot finds a threat, it will automatically resolve the issue and either quarantine the file or delete the file. There is very little maintenance to perform.
While the firewall blocks websites, Webroot is a second layer of protection that blocks when the system is not behind a company firewall.
Definition updates are handled by the console with cloud-based threat intelligence. All systems use the same definition updates and policies.
Webroot will automatically update to the newest version. There is no need to manually update the software version.
The console can generate alerts and reports. Alerts send an email or text message when any problem is found. Reports shows a list of problems for a time period; for example for the last 30 days, 60 days or 90 days.
The only other antivirus we are considering Cylance.
Trying to reset cisco password; getting "% Authorization failed" for every command. I guess there is an AAA set.
PC <-> usb-to-serial-connection <-> serial-to-ethernet <-> ethernet-to-console
plug into console
putty
select serial
type: com3
Power on router
startup sequence shows.
hit CTRL + BREAK (within 60 seconds).
type: confreg 0x2142
type: reset
Wait for reboot.
type: no
type: enable
type: show startup-config
copy the entire output to your pc and save.
type: config t
type: config-register 0x2142
type: end
type: reload
type: no
confirm the reload with enter
type: no (when ask to enter the initial config).
type: enable
type: config t
type: config-register 0x2102 (notice this is different)
type: end
type: write memory
type: reload
hit ENTER to confirm reload
We had our first interaction with Webex Room Kit recently. After hashing it out for a few days, here are a couple of tips that might help:
Webex Meetings is traditional Webex. You can host/schedule meetings and other people can join. The meetings can be for small 1-on-1 type of meetings or they can be webinar type of meetings where one person presents and everyone else is muted. Up to 1000 people can attend.
Webex Teams is like Skype. Others ring you and you can ANSWER or DECLINE.
Since they function differently, you will need both, if needed. My recommendation is to skip Webex Teams altogether. More on that later.
Here is the current link for Webex Meetings (Windows):
https://akamaicdn.webex.com/client/WBXclient-39.4.5-5/webexapp.msi
You can install silently by:
msiexec.exe /i "webexapp-39.4.5-5.msi" ALLUSERS=1 /qn /norestart /log output.log
When Outlook is closed, Webex Meetings buttons will install into Outlook. You can use the buttons to Start a Meeting or Schedule a Meeting directly from Outlook.
These buttons are not available for Webex Teams. This is a deal-breaker for Webex Teams.
If a user is not going to START/HOST/SCHEDULE a meeting, they do not need a license.
They can still attend meetings that others START/HOST/SCHEDULE.
In NAMED-USER, you will pay for every person that has an account. If they never HOST/SCHEDULE a meeting, you will still pay.
In ACTIVE-USER, you pay for the number of meetings that can happen at one-time. Like incoming/outgoing phone lines, once they are used up, someone will have to wait till a spot is free to make a call.
This is kind of a bummer for small companies. It would be awesome if a 5 license option were available for smaller companies who may want the features of Webex but don't host meetings too often.
For larger companies, with ACTIVE-LICENSE, you can install on everyone's computer (say 250 computers) and only pay for 40 licenses. Awesome option!
In thinking about it, it makes sense. If you have a conference room of 4 people and they need to call another room, that other room will have to ANSWER for anything to happen. If not, it just rings like a phone until a NO-ANSWER message shows. It will not just show the other conference room and wait for other people to show. That would be kind of creepy.
So if someone starts a Webex Meeting and you try to join via Webex Room Kit by calling their name from the Directory, it will not join the Meeting. It will just ring. This has been the single biggest source of frustration with the Webex Room Kit. People stomp away cursing under their breath about how the stuff doesn't work.
I'm trying to see if that can be changed.
If you start to type in someone's name, they will show twice. Once as their name and a second time as a PERSONAL-ROOM. By tapping on their name, you are calling them via Webex Teams. By tapping on their PERSONAL-ROOM, you are calling them via Webex Meetings. This is "fix" for the frustration above. Trying to communicate (educate?) people on this has proven to be difficult.
In short, call the Personal Room.
This web site can control the Webex Room Kit. Options like Whiteboard focus, so that the camera can focus on the person in the conference room along with a Whiteboard and options like Standby-Branding, so that you can display a web site on the TV while the Webex Room Kit is not being used are both options can be found by a little digging.
OK, it is their version of Siri/Cortana but you can say, "Hey Webex, call John" and it will do your bidding. Of course, use caution on the whole Teams/Meeting Personal Room aspect.
In the end, Webex Room Kits along with Webex Meetings is one of the best all around options available for video conferencing and can change the entire culture of the company while providing best-in-class service to customers. Webex Meetings is great but needs a bit of class time to get the full features out of it. Webex Teams,while perhaps necessary, is very confusing to communicate and for users to pick up on their own. Having 2 options only serves to increase support times. Do yourself a favor and ditch Webex Teams going with Webex Meetings only is the way to go.
Now to see if it is possible to change that darn Directory in Webex Room Kit Touchpad to only show Personal Rooms...
Why WatchGuard instead of {insert brand name here}? Good question.
First and foremost, WatchGuard has fine-grain control. This means that WatchGuard will inspect every incoming and outgoing traffic. This is done on a port level (0-65,535) and a portocol level. This means it can allow/deny protocols on ports that it should not be running on. This is different than lower-end systems that will allow all outgoing traffic but only port-forwards incoming ports.
WatchGuard automatically denies something that it does not recognize. This is important for security. This way, only items that need to go through are doing so through manual allowance rather than automatic allowance.
WatchGuard can handle multiple interfaces. This means dual WAN connections or possibly more; such as dual-WAN and MPLS connections. Or perhaps a single WAN connection and multiple internal network segments that are completely separate. Think in terms of an office suite where there might be 5 tenants or more sharing a single internet connection. The economies of scale are at work here as every tenant could share a single fiber connection rather than each getting their own WAN/ISP.
WatchGuard can handle multiple public IP addresses all on the same interface. This means that we can use one ip address for our LAN and other dedicated IP addresses for servers. This helps for security but also if you have multiple servers using the same port number, say port 80 for web hosting. You can have multiple web servers behind the same WatchGuard with different public ip address but using the same WAN connection.
WatchGuard will apply new configurations without rebooting the system. The only time a reboot is needed is when the OS is updated. This is a dream if you ever managed any other system that wants to reboot everytime a change is made.
WatchGuard has wireless controller builtin. This allows for easy deployment of several access points (AP's) at once. It will sniff out new AP's and ask if it should manage them. This can be done via internet as well. So upgrading AP firmware is done in one fell scheduled swoop in the wee hours of the morning during low/no traffic.
WatchGuard is business class ready. Stop using home quality routers at the office. With uptimes more than a year, WatchGuard is built for the offices both large and small.
WatchGuard has integrated Threat Detection client that can run on the systems. If cryptolocker is detected, WatchGuard can shut it down automatically.
WatchGuard handles VPN through SSL VPN (it can also do PPTP and IPSEC). With PPTP being outdated and other systems difficult to setup, WatchGuard SSL VPN works out of the box. And it works at most remote situations since it runs over https/port 443. This saves on support time for road warriors and conference travelers needing to connect back to the office.
Also WatchGuard VPN can be site to site with super easy drag and drop configuration.
Next, WatchGuard VPN can be split-tunnel for remote workers. This allows remote workers to use the local internet connection for web surfing and the VPN connection for office network shares. Helps in situations where road warriors need to print to their local network printers but still need access to the office server.
WatchGuard VPN works with OpenVPN. Actually, the WatchGuard VPN is wrapper around OpenVPN. This allows all sorts of customization including sending the traffic to be forced over the VPN connection and/or domain name dns traffic direction. For example, send all internal traffic to internal-domain-name.tld over the VPN where it will work (and not over the internet connection where it will not work).
WatchGuard can be managed centrally through WatchGuard System Manager. This means that if you have several WatchGuard firewalls (or hundreds... cough, cough), you can manage them all from a single console. This manages licenses, upgrades, wireless firmware, firewall rules. You name it and the WatchGuard System Manager can manage it.
Likewise, WatchGuard has Centralized Reporting in the form of WatchGuard Dimension. All traffic from all clients across all WatchGuard Firewalls is recorded in a central location. If we need to run a report on web sites visited during a certain time, no problem. Here it is.
Putting this all together means that we can manage many WatchGuard systems and their wireless access points and their reporting across North America without ever leaving network operations center (NOC).
Here is how to get the disk space in powershell with GB (aka human readable numbers):
get-psdrive
Here it is cleaned up a bit:
get-psdrive -PSProvider filesystem | Format-Table -Wrap -AutoSize -Property Root,@{Name='UsedGB';Expression={[math]::round($_.used/1gb,2)}}, @{Name='FreeGB';Expression={[math]::round($_.free/1gb,2)}}, @{Name='PctFree';expression={$_.free/($_.free+$_.used)*100 –as [int]}}
It has every connected drive, drive letter, used GB, free GB and Percentage Free GB.
WatchGuard Downloads are here:
https://portal.watchguard.com/softwarehome
(formerly; https://watchguardsupport.secure.force.com/software/)
The OS upgrade option is built into the web ui and should be used to upgrade versions. The OS upgrade will also upgrade the SSL VPN client versions that are stored directly on the Firebox.
Let's say that you have limited access to a system. Let's say that you want to download a WebEx package to the system via command line/powershell. Here's how:
wget "https://akamaicdn.webex.com/client/WBXclient-39.4.5-5/webexapp.msi" -outfile "webexapp.msi"
msiexec.exe /i "webexapp.msi" ALLUSERS=1 /qn /norestart /log output.log
Remove Appx app (is that redundant?):
Get-AppxPackage -allusers -name "Microsoft.MicrosoftOfficeHub" |Remove-AppxPackage
Here is an example:
REMOVEGet-AppxPackage -allusers -name "Microsoft.Windows.Photos" |Remove-AppxPackage
GETGet-AppxPackage -allusers | Select Name, PackageFullName |findstr /i photo
ADDAdd-AppxPackage -register "C:\Program Files\WindowsApps\Microsoft.Windows.Photos_2019.19071.17920.0_x64__8wekyb3d8bbwe\appxmanifest.xml" -DisableDevelopmentMode
Click here to see how to set the Surface Pro 4 to Max Performance on the Intel HD Graphics and the Processor:
https://www.windowscentral.com/how-max-intel-hd-graphics-surface-pro-4
MacBook Pro circa 2011 running bootcamp and Windows 10. Updated to 1903. BSOD "WDF_VIOLATION."
-hold power button to shut off.
-press power button to turn on.
-do this about 3 times. After the 3rd time, the option for ADVANCED BOOT should appear.
-press F8
-select SAFE-MODE WITH COMMAND-PROMPT
-login as normal.
(a scary black screen shows)
-you will be at c:\windows\system32
-type: cd drivers
-type: dir |findstr /i machal
-it will show: MacHALDriver.sys
-this is our problem.
-type: rename MacHALDriver.sys MacHALDriver.sys.sav
-press ENTER key
-type: shutdown -r -t 3
-press ENTER key
The system will reboot and you should be able to login as normal with the BSOD. Apparently the BOOTCAMP DRIVERS V6 will fix. But I have not tried to install yet.
It is possible to setup different access to different groups.
Typically we block web site to weapons by default. Going to a web site like the following is blocked: beretta.com
But what if they are a client and we want the MARKETING group to allow access to the web site?
-this was the simple setup:
https://www.jscmgroup.com/watchguard-blog/2016/8/29/watchguard-webblocker-actions
Without any setup the log is:
2019-06-05 14:53:51 Deny 10.192.480.250 199.83.128.143 http/tcp 56564 80 0-LANLAG 0-External ProxyDeny: HTTP Request categories (Outbound-HTTP-proxy-00) proc_id="http-proxy" rc="595" msg_id="1AFF-0021" proxy_act="HTTP-Client.Standard.1" cats="Weapons" op="GET" dstname="beretta.com" arg="/favicon.ico"
-you can see that the proxy-action is: HTTP-Client.Standard.1.
-but it should be: HTTP-Client.marketing
-this is because the proxy-action is not attaching to the group. This is because I was trying on a system on a subnet with an exception for authentication:
10.192.480.0/24 (note: subnet not real for posting purposes)
-this results in NO-AUTH, NO-GROUP and NO-PROXY-ACTION.
-using different pc on: 10.192.420.0/24
-for setup, the key here is that the WatchGuard group name needs to be the same as the AD group name: MARKETING
-next, create the rule where you can create the proxy. I went the long way around.
-ultimately, I had to:
-edit-policy > Proxy-Action > HTTP Proxy Exceptions
-add: *.beretta.com
NOTES:
-going to: -edit-policy > Proxy-Action > WebBlocker
-click: EDIT > EXCEPTIONS
-click: ADD
-type: *.beretta.com/*
Did not work. I still ended up with log:
2019-06-05 15:40:06 Deny 10.192.420.100 199.83.134.143 http/tcp 61063 80 0-LANLAG 0-External ProxyDeny: HTTP Content Type match (Outbound-HTTP-Marketing-00) proc_id="http-proxy" rc="595" msg_id="1AFF-0018" proxy_act="HTTP-Client.marketing" rule_name="Default" src_user="dakruhm"
-the fix should be:
-edit-policy > Proxy-Action > HTTP-RESPONSE > CONTENT-TYPES
Here are my scribble notes so I don't have to look them up again.
Install the OpenText Enterprise Scan program.
Scanning is rather simple, just make sure you select the correct model of scanner and scan the document.
Next is sending to the Archive Server.
Setup the pipeline to the Archive server (ie 10.195.160.4).
scan config manager
Test the archive server pipeline:
scan > config-manager
Pipeline info:
localhost
Port 4023
Port 8080 (for management)
right-click & select LIST-PIPELINES
Start Enterprise Scan
Config Archive
Ops
Capture Center
Capture Center via shared
content server
doc pipe for content server
doc pipe for SAP
doc pipe for tcp
external storage
Flow
Doc pipeline SAP
Server
http
8080
check
nettcp secure
19284
local
localhttp
There is a possibility that there is a port on a firewall that needs to be opened if the archive server is offsite.
Check the profile: cmd > set
ecm conf dir = c:\ProgramData\Open Text (intentional space "Open" "space" "Text")
ecm doc pipeline base = c:\Program Files\OpenText
ecm doc pipeline conf = c:\ProgramData\OpenText (intentional nospace "OpenText")
ecm doc pipeline info = c:\ProgramData\OpenText (intentional nospace "OpenText")
ecm doc pipeline sap = c:\ProgramData\OpenText (intentional nospace "OpenText")
c:\ProgramData\OpenText\BASE Document Pipeline\config\dpconfig\dp.dpconfig
c:\ProgramData\OpenText\BASE Document Pipeline\config\dpconfig\dp.dpinfo
Error Message: Late_Archive_error | Could Not Process Document
Logs are here:
c:\ProgramData\OpenText\var\LogDir\doctods_1.log
http status code = '0', http status message = 'Couldn't resolve host name'
dsc::dscOpenDoc dsc.cxx-9776 cannot reserve a document id; the call of function dshDsReserveDocId() failed: 'HTTP error: connection was broken: host = denw08v701 (archive='ABC')'
This means the archive is not working because the local system cannot find the system that is named in the script. This happens because the server is outside the domain so simply stating the system as "denw08v701" it needs to be "denw08v701.domain.tld".
Or you can edit the HOSTS file:
c:\Windows\System32\drivers\etc\hosts
Add:
10.195.160.4 denw08v701
Find What Port Number a Mac Address Is On Cisco IOS
If you know the full Mac address, you can perform the following:
show mac address-table address 6476.7A98.1818
If you know just part of the Mac address (where 1818 is the last 4 digits of the Mac):
show mac address-table | include 1818
Change your interface, if needed:
enable
configure terminal
interface GigabitEthernet0/1
description MPLS
ip address 10.162.131.54 255.255.255.248
duplex full
speed 100
Be sure that your link speed is set correctly. Sometimes auto speed doesn't work right.
And change your gateway/bgp-neighbor, if needed:
router bgp 65000
no synchronization
bgp log-neighbor-changes
redistribute connected
redistribute ospf 30
neighbor 10.162.30.1 remote-as 65006
neighbor 10.162.131.49 remote-as 1
no auto-summary
And remember to save your running config as your startup config:
copy running-config startup-config
You can show your routes by:
show ip route
Integration services is Microsoft's terminology for client-tools/guest-tools. Other vendors such as VMware and VirtualBox have their own terminology but the idea is the same. With the tools installed the guest VM works better, faster, etc.
To see if the Integration Services are installed:
With Windows 10 Guest VM, and Server 2016 Host, the integration services are installed via Windows Update.
To see the version of Integration Services:
-type: REG QUERY "HKLM\Software\Microsoft\Virtual Machine\Auto" /v IntegrationServicesVersion
Then let us see if the service on the GuestVM is running:
-type: Get-Service -Name vm*
Let's say that you have a typical Windows domain network at the headquarters. A rule of the network account policy is that the password changes every 90 days.
And let's say that you have a group of outside sales people who do not come into the office. Every once in a while they vpn into HQ.
If the password expires on their account, they can still login to their laptops because the laptop keeps a local copy of the access list. But then the VPN fails and email fails.
They call and we reset their account password.
The VPN works.
But then how does the laptop get updated?
Here's how:
When unlocking, the computer is connected to the domain (via the VPN tunnel), It will verify the password with the domain. As a side effect this will update the password on the laptop.
Lets say you have a directory of photos. The directory is about 1TB and the hard drive is packed full. How do you delete files that are larger than a certain size?
Here's how:
cd /path/to/dir
find . -name "*.jpg" -size +1000k -delete
K is for KB.
Miss off the "-delete" if you want to run a test without deleting the files.
Adjust accordingly.
Or if you need to delete base on date (files older than 30 days):
find ./path/to/dir/ -type f -mtime +30 -delete
Find files larger than 1MB:
find ./directory-name-here -type f -size +1M
Find files older than 180 days:
find ./directory-name-here -type f -mtime +180 -exec rm -f {} \;
Here is the best source for setup of LDAPS:
For Mimecast, if you are using a self-signed certificate as the instructions above provide, set the Encryption Mode to: Relaxed
Rename user in Active Directory is a common task but putting it all in one spot
-open Active Directory Users and Computers.
-right-click on the Name.
-select RENAME.
(rename User dialog box appears to change other common items)
dsmove "
dsmod user "
rename-adobject "oldname" "newname"
or
Get-ADUser -Identity 'oldname' | Rename-ADObject -NewName 'newname'
For a full one-liner:
Get-ADUser "old.name" |Rename-ADObject -NewName “New Name” | Set-ADUser -GivenName “New” -Surname “Name” -DisplayName “New Name” -SamAccountName “newname” -UserPrincipalName "
NOTES:
All the following are different:
Name
GivenName
Surname
SamAccountName
DisplayName
OtherName
UserPrincipalName
Most can be set by: Set-ADUser
But the Name of the Object is a bit different and needs to be set by: Rename-ADObject
Check your work by using Get-ADUser.
Here is Get-ADUser:
https://docs.microsoft.com/en-us/powershell/module/addsadministration/get-aduser?view=win10-ps
Here is Set-ADUser:
https://docs.microsoft.com/en-us/powershell/module/addsadministration/set-aduser?view=win10-ps
Here is Rename-ADObject:
https://docs.microsoft.com/en-us/powershell/module/addsadministration/rename-adobject?view=win10-ps
Watchguard VPN setup. Watchguard has a split tunnel automatically. Works for hundreds of people.
Run into a new setup where the Watchguard VPN would connect but asking for vlan resources would respond back with the local network. The desired result is the remote network.
This happens to be on an ATT home router. The laptop is hard-wired connected. Note that the wireless connection work fine. Go figure.
Here's how to diagnose on the vpn laptop:
Typically, out of the box, each connection will have a name (obviously) and a setting for IPV4 and IPV6. Each setting will have a METRIC.
Let's say the the connections are named: ETHERNET and VPN.
You will notice that:
ETHERNET IPV4 has a metric of 35
ETHERNET IPV6 has a metric of 35
VPN IPV4 has a metric of 35
VPN IPV6 has a metric of 35
What we need to do is set the METRIC on the hard-wired connection to a number higher than the vpn connection. A lower metric specifies a higher priority.
-type: netsh int ipv4 set interface interface="ETHERNET" metric=40
-type: netsh int ipv6 set interface interface="ETHERNET" metric=40
That should do it.
Note that other posts will talk about turning ipv6 off, etc. This can be done via PowerShell:
Disable-NetAdapterBinding –InterfaceAlias “Ethernet Interface Name Here” –ComponentID ms_tcpip6
Or if you need to disable the network connection:
get-netadapter |ft
disable-netadapter -Name "Wi-Fi" -Confirm:$false
enable-netadapter -Name "Wi-Fi" -Confirm:$false
Watchguard Change Opened Ports | Watchguard Change Opened Outgoing Ports
Let's say that you already have a firewall policy on your Firebox. That firewall policy has a non-standard-port open from that static internal ip-address to the rest of the www (any-external) so that it can talk to who it needs to. Note that this is not a static server internally that needs to service the rest of the www such as a web server, this is simply a piece of software that needs to reach out on a non-standard-port.
Now, at the current moment, you need to either add to the port list or change the port number.
When you click on the firewall policy there is no option to edit the port list or the port number. How you change it?
Good question. What you want to do is change what is called in Watchguard terms, the firewall-policy-type.
Here's how:
I have yet to figure out if there is a better way to go directly to the firewall-policy-types.
Normally, we would call this Port Forwarding. In WatchGuard terms, they call it SNAT (Static NAT).
Here is how to port forward if you are hosting a server of some type on your internal network that needs to be accessible outside of the office:
Get All Mailboxes With Permissions Other Than Themselves. Here's how:
Get-Mailbox | Get-MailboxPermission | where {$_.user.tostring() -ne "NT AUTHORITY\SELF" -and $_.IsInherited -eq $false} | Select Identity,User,@{Name='Access Rights';Expression={[string]::join(', ', $_.AccessRights)}} | Export-Csv -NoTypeInformation mailboxpermissions-v1.csv
